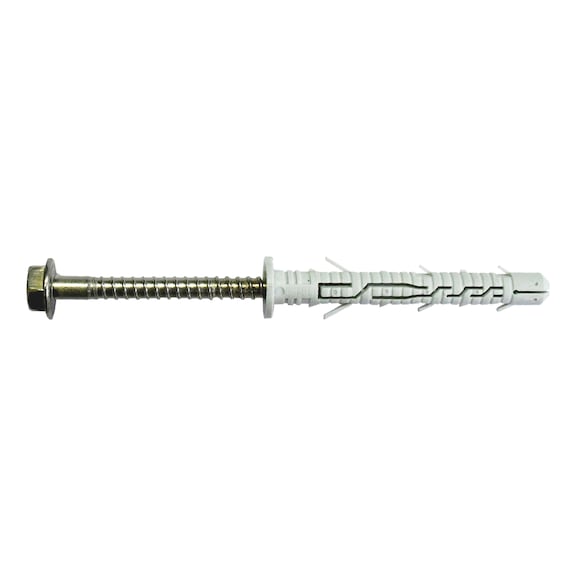

Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistance R90 | ETA Approved | @Pack of 50 | by Wurth
The Plastic Frame Anchor W FRAH 10 is designed for robust fastening in construction and industrial applications. Made from durable stainless steel A4, it offers a fire resistance rating of R90 and is ETA approved for safety and reliability. Ideal for securing fixtures to concrete and masonry, this anchor ensures compliance with fire safety standards, making it a perfect choice for fire-resistant installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistance R90 | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910703
Alternatively Known As: Plastic Frame Anchor, Stainless Steel Anchor, W-FRA Anchor, W FRAH10 Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 120 mm
- Max. attachment height (t fix): 50 mm
- Nominal drill-bit diameter (d0): 10 mm
- Through-hole diameter (df): 11 mm
- Fire resistance rating: R90
- Screw diameter: 7 mm
- Screw length: 125 mm
- Approval: ETA
- Type description: W-FRA
- Dimensions (H x L x W): 120mm x 10mm x 10mm
- Weight: 0.15 kg
Key Features
- Made from stainless steel A4 for corrosion resistance
- Fire resistance rating of R90
- Approved with ETA certification
- Suitable for use with 7 mm diameter screws up to 125 mm length
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with fire safety and structural standards.
Applications
- Construction: Securing fixtures to concrete, masonry, and other solid substrates
- Industrial: Heavy-duty fastening in structural applications
- General: Suitable for use in fire-resistant installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Fire resistance enhances safety and reduces risk of fire-related damage
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Plastic Frame Anchor W FRAH 10 Stainless Steel A4 is available for immediate purchase, ideal for construction and industrial fastening applications.
