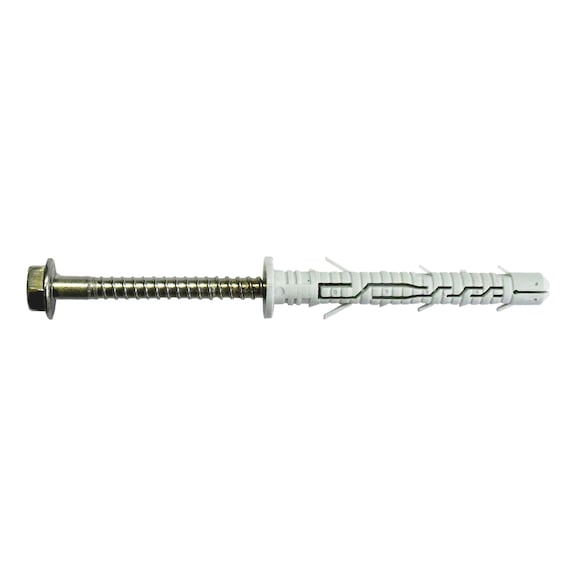

Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistance R90 | ETA Approved | @Pack of 50 | by Wurth
The Plastic Frame Anchor W FRAH 10 is designed for robust fastening in construction and industrial applications. Made from durable stainless steel A4, it offers exceptional corrosion resistance and a fire resistance rating of R90, ensuring safety and reliability. Ideal for securing fixtures to concrete and masonry, this anchor is ETA approved for peace of mind in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistance R90 | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910704
Alternatively Known As: Plastic Frame Anchor, Stainless Steel Anchor, W-FRA Anchor, W FRAH10 Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 140 mm
- Max. attachment height (t fix): 70 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Through-hole in component (d f): 11 mm
- Fire resistance rating: R90
- Screw diameter: 7 mm
- Screw length: 145 mm
- Approval: ETA
- Type description: W-FRA
- Dimensions (H x L x W): 140mm x 10mm x 10mm
- Weight: 0.2 kg
Key Features
- Made from stainless steel A4 for corrosion resistance
- Fire resistance rating of R90
- Approved with ETA certification
- Suitable for use with 7 mm diameter screws
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and local building codes.
Applications
- Construction: Securing fixtures to concrete, masonry, and other solid substrates
- Industrial: Heavy-duty fastening in structural applications
- General: Suitable for use in fire-resistant installations
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Fire resistance enhances safety and reduces risk of fire damage
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Plastic Frame Anchor W FRAH 10 Stainless Steel A4 is available for immediate purchase, ideal for construction and industrial fastening applications.
