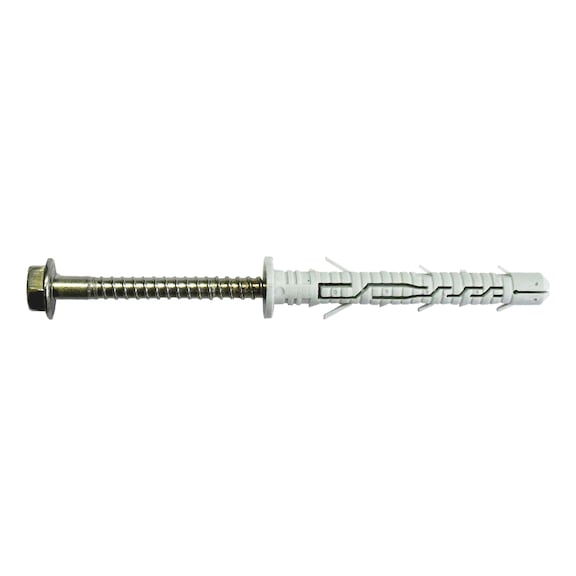

Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistant R90 | @Pack of 50 | by Wurth
The Plastic Frame Anchor W FRAH 10 is designed for secure fastening in construction and industrial applications. Made from durable stainless steel A4, it features a fire resistance rating of R90, ensuring safety in fire-resistant installations. With an approved ETA rating, this anchor is perfect for heavy-duty use, providing reliable performance for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W FRAH 10 | Stainless Steel A4 | Fire Resistant R90 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910705
Alternatively Known As: Plastic Frame Anchor, Stainless Steel Anchor, W-FRA Anchor, Fire Resistant Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max. attachment height: 90 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 11 mm
- Fire resistance rating: R90
- Screw diameter: 7 mm
- Screw length: 165 mm
- Approval: ETA
- Type description: W-FRA
- Dimensions (H x L x W): 160mm x 160mm x 10mm
- Weight: 0.2 kg
Key Features
- Made from stainless steel A4 for corrosion resistance
- Fire resistance rating of R90
- Approved ETA anchor for reliable performance
- Suitable for use with 10 mm diameter drill bits
- Designed for maximum attachment height of 90 mm
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with fire safety and structural standards.
Applications
- Construction: Securing fixtures to concrete, masonry, and other solid substrates
- Industrial: Heavy-duty fastening in structural applications
- General: Suitable for use in fire-resistant installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel construction ensures long product life and reduces replacement waste
- Fire resistance contributes to safer building environments
Warranty Information
Wurth provides a standard warranty covering manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W FRAH 10 Stainless Steel A4 is available for immediate purchase, ideal for construction and fire-resistant fastening applications.
