Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | 10mm Diameter | @Pack of 50 | by Wurth

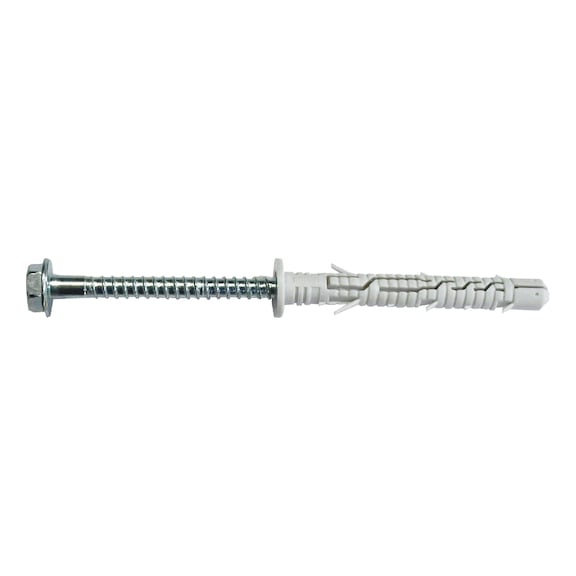

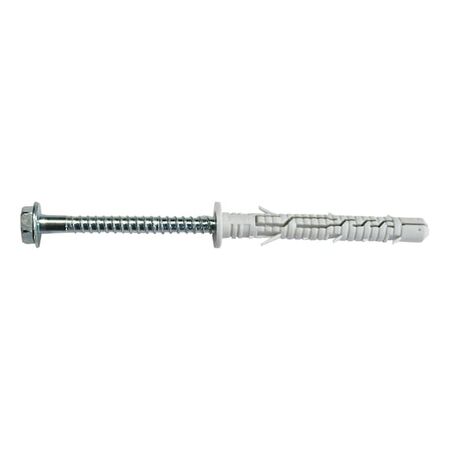

The Plastic Frame Anchor W-FRAH 10 is designed for secure frame fixing in concrete and solid brick, featuring a fire resistance rating of R90 and a durable steel zinc plated finish. With a 10mm diameter and 120mm length, it's perfect for mounting windows, doors, and other structural components, ensuring compliance with building standards and longevity in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | 10mm Diameter | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910603
Alternatively Known As: Plastic Frame Fixing Anchor, Zinc Plated Frame Anchor, W-FRAH 10 Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 120 mm
- Max. attachment height: 50 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 11 mm
- Fire resistance rating: R90
- Type description: W-FRA
- Dimensions (H x L x W): 120mm x 10mm x 10mm
- Weight: 0.5 kg
Key Features
- Steel zinc plated for corrosion resistance
- Fire resistance rating R90
- Anchor diameter 10 mm with 120 mm length
- Max attachment height 50 mm
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct fixing and compliance with building standards.
Applications
- Suitable for fixing in concrete, solid brick, and other solid building materials
- Used for mounting frames, windows, doors, and other structural components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Plastic Frame Anchor W-FRAH 10 Steel Zinc Plated 50 PCS is available for immediate purchase, ideal for construction and building applications requiring secure frame fixing.
