Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth

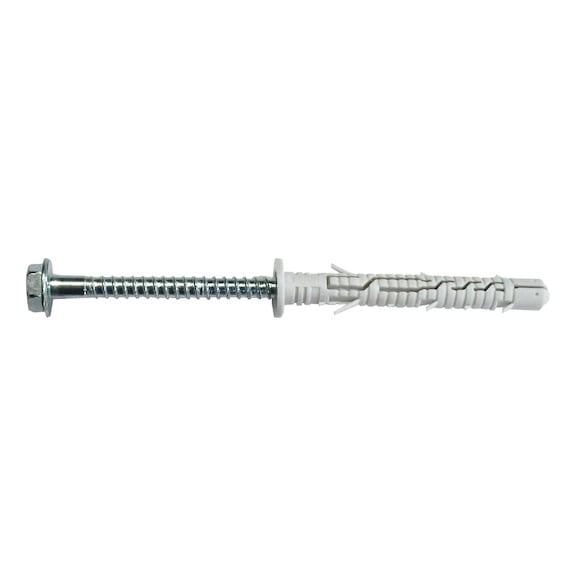

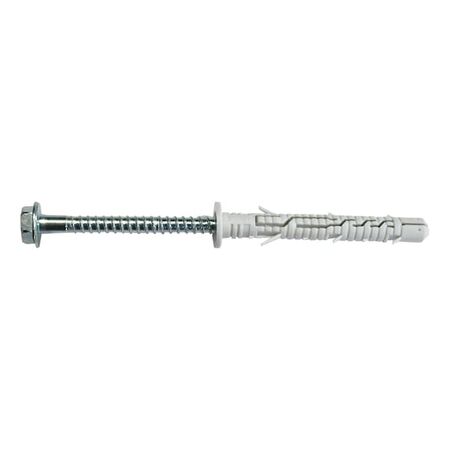

Plastic Frame Anchor W-FRAH 10 is designed for reliable fastening in construction and industrial applications. With a fire resistance rating of R90 and steel zinc plating for corrosion resistance, it ensures durability and safety. Ideal for securing fixtures to concrete and masonry, this anchor is perfect for professional installations requiring compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910602
Alternatively Known As: Plastic Frame Anchor, W-FRA Anchor, Zinc Plated Frame Anchor, Steel Frame Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 11 mm
- Fire resistance rating: R90
- Type description: W-FRA
- Dimensions (H x L x W): 100mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel zinc plated for corrosion resistance
- Fire resistance rating of R90
- Designed for use with 10 mm diameter drill bits
- Suitable for attachment heights up to 30 mm
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchoring and compliance with safety standards.
Applications
- Construction: Securing fixtures to concrete, masonry, and other solid materials
- Industrial: Heavy-duty fastening in structural applications
- General: Suitable for use in fire-resistant installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste
- Zinc plating provides corrosion resistance, extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W-FRAH 10 Steel Zinc Plated 50 PCS is available now for immediate purchase. Ideal for construction and industrial fastening applications.
