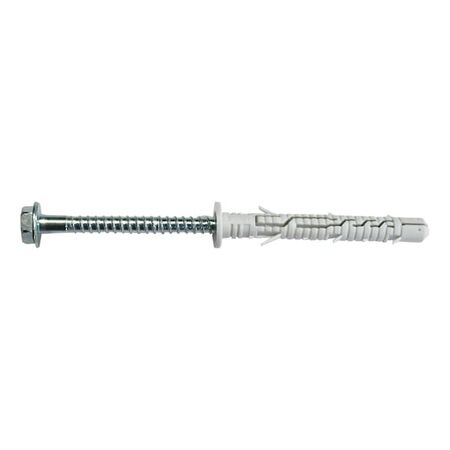

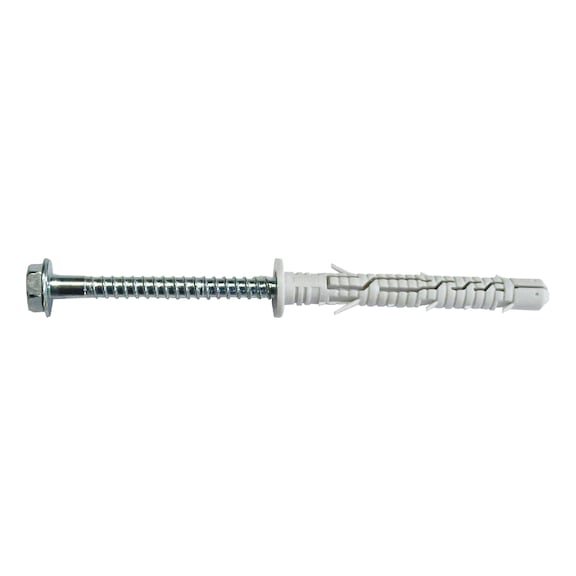

Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth
Plastic Frame Anchor W-FRAH 10 is designed for heavy-duty anchoring with a 10 mm diameter and fire resistance rating of R90. Ideal for construction and industrial applications, this anchor ensures secure fastening to concrete, masonry, and steel structures. With its durable steel zinc plating, it offers excellent corrosion resistance, making it a reliable choice for both structural and non-structural uses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-FRAH 10 | Steel Zinc Plated | Fire Resistance R90 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912910605
Alternatively Known As: Plastic Frame Anchor, Steel Frame Anchor, Zinc Plated Anchor, W-FRAH 10 Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max. attachment height (t fix): 90 mm
- Nominal drill-bit diameter (d 0): 10 mm
- Through-hole in the component to be connected (d f): 11 mm
- Fire resistance rating: R90
- Type description: W-FRA
- Dimensions (H x L x W): 160mm x 160mm x 10mm
- Weight: 0.2 kg
Key Features
- Steel zinc plated for corrosion resistance
- Fire resistance rating R90
- Suitable for heavy-duty anchoring with a 10 mm diameter
- Max attachment height of 90 mm
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchoring and compliance with safety standards.
Applications
- Construction: Securing fixtures to concrete, masonry, and steel structures
- Industrial: Heavy-duty fastening in manufacturing and assembly
- General: Suitable for use in structural and non-structural applications requiring strong anchoring
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste
- Zinc plating provides corrosion resistance, extending product life and reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W-FRAH 10 Steel Zinc Plated 50 PCS is available now for immediate purchase. Ideal for construction and industrial fastening applications.
