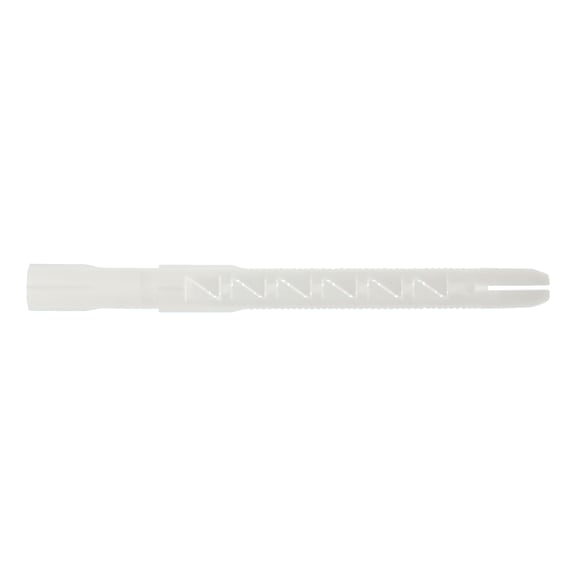

Plastic Frame Anchor W RD | 10mm Diameter | High Load Capacity | @100mm by Wurth
The Plastic Frame Anchor W RD is designed for high load capacity applications, featuring a 10mm diameter and 100mm length. Ideal for secure fastening in concrete, brick, and masonry, this anchor ensures excellent stability with its anti-rotation lock and expansion in four directions. Perfect for both indoor and outdoor use, it’s a reliable choice for construction professionals seeking durable and effective anchoring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W RD | 10mm Diameter | High Load Capacity | @100mm by Wurth
Brand: Wurth
SKU: 912810802
Alternatively Known As: Plastic Frame Anchor, Wurth Frame Anchor, W RD Anchor, Nylon Frame Anchor, Wall Anchor Without Collar
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Screw diameter: 7 mm
- Drill hole depth: 80 mm
- Type description: W-RD 10, without collar
- Dimensions (H x L x W): 100mm x 10mm x 10mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent application and high working loads
- Anti-rotation lock prevents spinning of the anchor sleeve during installation
- Flexible application with in-place installation facilitating and speeding up the process
- Hammer-in stop prevents premature expansion during installation
- Effective stability and protection with strong anti-rotation lock
- Improved load transmission through even, continuous load transfer across the entire expansion area
- Anchor sleeve made of high-quality polyamide, halogen and silicone free
- Thermally stable from -40 °C to +80 °C
- Inconspicuous natural colour without additional dyes or coatings
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct drill hole depth and secure fastening.
Applications
- Suitable for use in concrete, brick, and masonry for secure fastening
- Ideal for outdoor and wet room applications when used with stainless steel screws
- General construction and building fastening needs requiring high load capacity anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free high-quality polyamide, reducing harmful chemical impact
- Durable and thermally stable material extends product life, reducing waste
Warranty Information
Wurth provides a standard product warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth W RD Plastic Frame Anchor without collar is available for immediate purchase, ideal for construction and building fastening applications.
