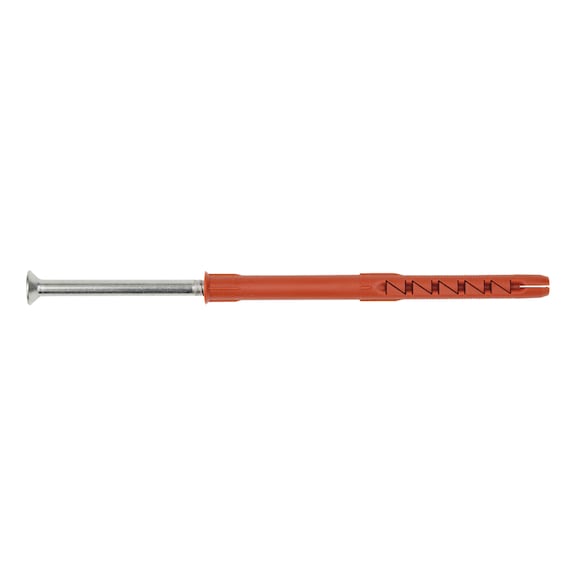

Plastic Frame Anchor W-UR 10 A4 Stainless Steel | High Load Capacity | Countersunk Head | @Pack of 50 | by Wurth
Plastic frame anchor W-UR 10 A4 stainless steel is designed for high load-bearing applications, featuring a countersunk head and a durable polyamide anchor sleeve. Ideal for construction projects, this anchor ensures secure fastening in concrete and masonry, with immediate load-bearing capacity and easy installation. Perfect for professionals seeking reliable anchoring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 10 A4 Stainless Steel | High Load Capacity | Countersunk Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912810501
Alternatively Known As: Plastic frame anchor, W-UR 10 anchor, stainless steel frame anchor, polyamide anchor sleeve, high load frame anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Screw material: Stainless steel A4
- Internal drive: AW40
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10 A4, countersunk head screw
- Dimensions (H x L x W): 80mm x 80mm x 10mm
- Weight: 0.05 kg
Key Features
- Plastic frame anchor approved for high loads with special A4 stainless steel screw
- Countersunk head with Symcon thread for secure anchorage
- Anchor sleeve made of high-quality polyamide
- Push-through installation with immediate load-bearing capacity, no waiting time
- Low insertion torque resulting in slight expansion and minimal sleeve movement
- Very strong twist lock with expansion in four directions
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled anchor sleeve and special screw for easier installation
- Improved load transfer in solid and hollow construction materials
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole depth and secure anchorage according to manufacturer guidelines.
Applications
- Suitable for concrete, perforated and solid brick masonry, aerated concrete
- Ideal for high load-bearing frame anchoring in construction and building projects
- Used in solid and hollow construction materials for secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion-resistant stainless steel screw extends product lifespan
- Efficient installation reduces energy and resource use on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W-UR 10 A4 Stainless Steel 50 PCS is available for immediate purchase, ideal for construction and building applications requiring high load-bearing anchors.
