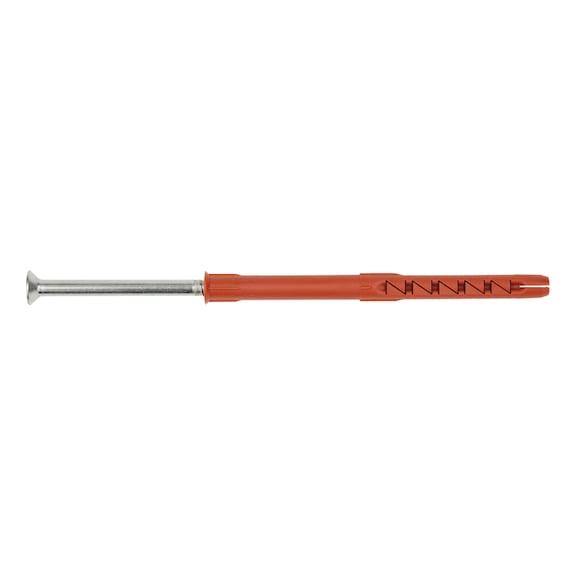

Plastic Frame Anchor W-UR 10 A4 Stainless Steel | High Load Capacity | Countersunk Head | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR 10 A4 Stainless Steel is designed for high load-bearing applications, featuring a durable polyamide sleeve and a countersunk head for secure anchorage. Ideal for concrete and brick masonry, this anchor ensures immediate load-bearing capacity with low insertion torque, making it perfect for construction projects requiring reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 10 A4 Stainless Steel | High Load Capacity | Countersunk Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912810502
Alternatively Known As: Plastic frame anchor, W-UR 10 anchor, stainless steel frame anchor, polyamide anchor sleeve, high load frame anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Material of screw: Stainless steel A4
- Internal drive: AW40
- Surface of the screw: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10 A4, countersunk head screw
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.05 kg
Key Features
- Plastic frame anchor approved for high loads with special A4 stainless steel screw
- Countersunk head with Symcon thread for secure anchorage
- Anchor sleeve made of high-quality polyamide
- Push-through installation with immediate load-bearing capacity, no waiting time
- Low insertion torque resulting in slight expansion and minimal sleeve movement
- Very strong twist lock with expansion in four directions
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled anchor sleeve and special screw for easier installation
- Improved load transfer in solid and hollow construction materials
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct anchoring and load distribution.
Applications
- Suitable for concrete, perforated and solid brick masonry, aerated concrete
- Ideal for high load-bearing frame anchoring in construction and building projects
- Used in solid and hollow construction materials for secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel screw and high-quality polyamide sleeve ensure long product life reducing waste
- Efficient installation reduces material waste and energy consumption on site
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W-UR 10 A4 Stainless Steel 50 PCS is available now for immediate purchase. Ideal for construction and building applications requiring high load-bearing frame anchors.
