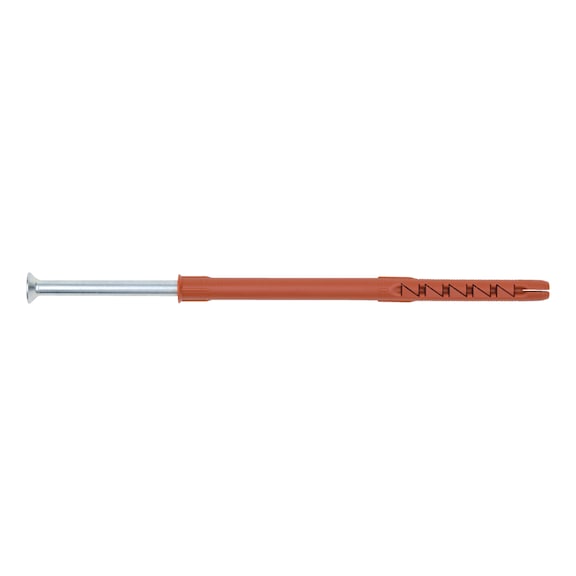

Plastic Frame Anchor W-UR 10 | ETA Approved | Zinc-Plated Steel | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR 10 is the first frame anchor with ETA approval, designed for reliable anchoring in over 60 stone types and aerated concrete. Made from high-quality zinc-plated steel, it features a countersunk head screw for easy installation and immediate load-bearing capacity. Ideal for construction and building fastening applications, this anchor ensures strong load transfer and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 10 | ETA Approved | Zinc-Plated Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912810404
Alternatively Known As: Plastic wall anchor, frame anchor plug, W-UR 10 anchor, zinc-plated frame anchor, polyamide wall plug
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 135 mm
- Max. attachment height: 65 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10, countersunk head screw
- Dimensions (H x L x W): 135mm x 10.5mm x 10mm
- Weight: 0.15 kg
Key Features
- First frame anchor with ETA approval
- Tested and approved for use in various stone types and aerated concrete
- Countersunk head screw made of zinc-plated steel
- Anchorage via friction locking between wall plug body and anchoring base
- Wall plug body made of high-quality polyamide
- Push-through installation with immediate load-bearing capacity
- Virtually no movement of the wall plug body
- Low screw-in torque
- Slight spreading of the anchor with very strong twist lock
- Expansion in four directions for improved load transfer
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled wall plug body and special screw for low assembly workload
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole depth and secure anchoring according to manufacturer guidelines.
Applications
- Suitable for anchoring in more than 60 stone types and aerated concrete
- Ideal for solid and hollow construction materials
- Used in construction and building fastening applications requiring strong load-bearing anchors
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
Wurth Plastic Frame Anchor W-UR 10 Zinc-Plated Steel 50 PCS is available for immediate purchase, ideal for construction and building fastening applications.
