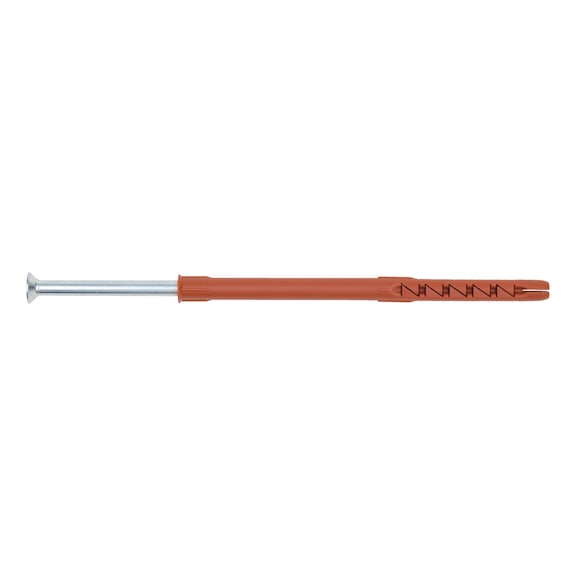

Plastic Frame Anchor W-UR 10 | ETA Approved | Zinc-Plated Steel | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR 10 is the first frame anchor with ETA approval, designed for anchoring in over 60 stone types and aerated concrete. Ideal for solid and hollow construction materials, it features a countersunk head screw made of zinc-plated steel, ensuring immediate load-bearing capacity without waiting. Perfect for construction and building fastening applications requiring strong load-bearing anchors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 10 | ETA Approved | Zinc-Plated Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912810406
Alternatively Known As: Plastic wall anchor, Frame anchor plug, W-UR 10 anchor, Zinc-plated frame anchor, Polyamide wall plug
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 185 mm
- Max. attachment height (t fix): 115 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter in component: 10.5 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10, countersunk head screw
- Dimensions (H x L x W): 185mm x 10.5mm x 10mm
- Weight: 0.1 kg
Key Features
- First frame anchor with ETA approval
- Tested and approved for use in over 60 stone types and aerated concrete
- Countersunk head screw made of zinc-plated steel
- Anchorage via friction locking between wall plug body and anchoring base
- Wall plug body made of high-quality polyamide
- Push-through installation with immediate load-bearing capacity, no waiting required
- Virtually no movement of the wall plug body
- Low screw-in torque of the plug screw
- Slight spreading of the anchor with very strong twist lock
- High load-bearing capacities with expansion in four directions
- Improved load transfer and even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Low assembly workload with pre-assembled wall plug body and special screw
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchoring and compliance with building standards.
Applications
- Suitable for anchoring in more than 60 stone types and aerated concrete
- Ideal for solid and hollow construction materials
- Used in construction and building fastening applications requiring strong load-bearing anchors
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High load capacity minimizes material waste in construction
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Plastic Frame Anchor W-UR 10 Zinc-plated Steel 50 PCS is available for immediate purchase, ideal for construction and building fastening applications.
