Plastic Frame Anchor W-UR 8 | 8mm Diameter | Zinc Plated Steel | Countersunk Head | @Pack of 50 | by Wurth

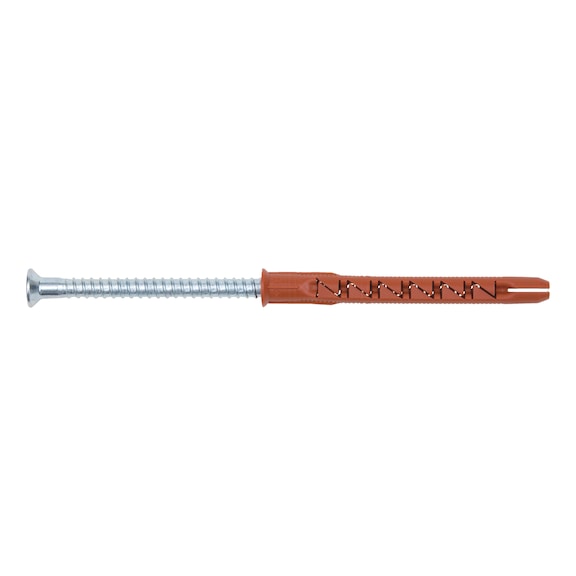

Plastic Frame Anchor W-UR 8 is designed for reliable fastening in over 90 stone types and aerated concrete. With an 8mm diameter and a countersunk head made of zinc plated steel, it ensures immediate load-bearing capacity and easy installation. Ideal for window installations and general construction applications, this anchor provides excellent load distribution and minimal distortion during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 8 | 8mm Diameter | Zinc Plated Steel | Countersunk Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808402
Alternatively Known As: Plastic wall anchor, frame anchor plug, W-UR 8 anchor, wall plug with screw, countersunk head anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole in component: 8.5 mm
- Attachment height: 10 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-08/0190
- Type description: W-UR 8, countersunk head screw
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Tested and approved in over 90 stone types and aerated concrete
- Countersunk head screw made of zinc plated steel
- Immediate load-bearing capacity with no waiting time
- Almost no distortion of the wall plug body
- Low screw-in torque for easy installation
- Slight spreading of the anchor for high load-bearing capacities
- Expansion in four directions with two insertion depths
- Improved load transfer in solid and hollow construction materials
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled wall plug body and special screw for easier installation
- Anchorage via friction locking between wall plug body and anchoring base
- Push-through installation method
Professional Installation Requirements
- Professional installation recommended to ensure correct drill size and secure anchorage according to building codes.
Applications
- Suitable for mounting in more than 90 stone types and aerated concrete

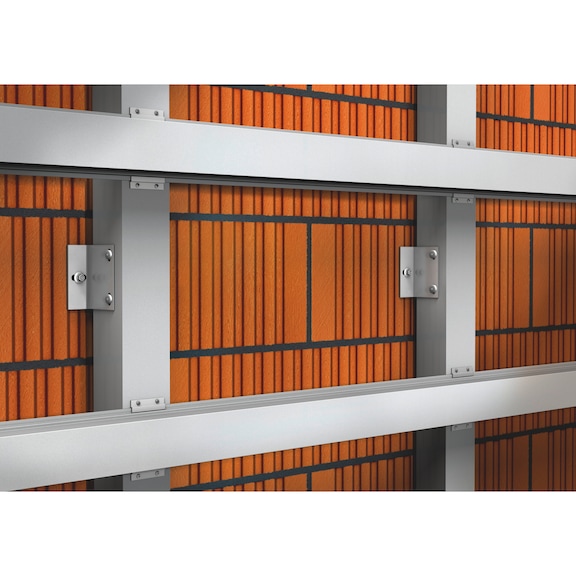

- Ideal for window installation and mounting in reveal
- General construction and building fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
Wurth Plastic Frame Anchor W-UR 8 50 PCS is available for immediate purchase, ideal for construction and building fastening applications.
