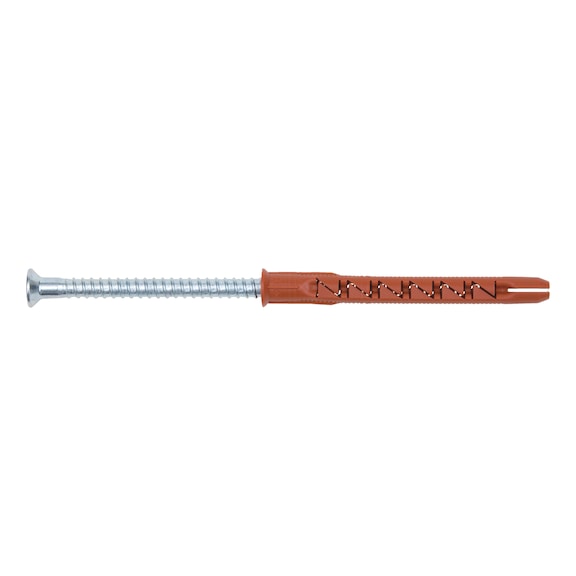

Plastic Frame Anchor W-UR 8 | 8mm Diameter | Zinc Plated Steel | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR 8 with 8mm diameter and zinc plated steel construction is perfect for mounting in over 90 stone types and aerated concrete. Designed for easy installation with immediate load-bearing capacity, it's ideal for construction and window installation applications, ensuring compliance with building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR 8 | 8mm Diameter | Zinc Plated Steel | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808405
Alternatively Known As: Plastic wall anchor, frame fixing anchor, W-UR 8 anchor, countersunk head wall plug, construction anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole in component: 8.5 mm
- Attachment height: 70 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-08/0190
- Type description: W-UR 8, countersunk head screw
- Dimensions (H x L x W): 120mm x 8.5mm x 8mm
- Weight: 0.05 kg
Key Features
- Tested and approved in over 90 stone types and aerated concrete
- Countersunk head screw made of zinc plated steel
- Immediate load-bearing capacity with no waiting time
- Almost no distortion of the wall plug body
- Low screw-in torque for easy installation
- Slight spreading of the anchor for high load-bearing capacities
- Expansion in four directions with two insertion depths
- Improved load transfer in solid and hollow construction materials
- Even, continuous load distribution across the entire expansion area
- Hammer-in stop prevents premature expansion during installation
- Pre-assembled wall plug body and special screw for easier installation
- Anchorage via friction locking between wall plug body and anchoring base
- Push-through installation
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper load-bearing and compliance with building standards.
Applications
- Suitable for mounting in more than 90 stone types and aerated concrete
- Approved for window installation and mounting in reveal
- General construction and building fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Plastic Frame Anchor W-UR 8 50 PCS is available now for immediate purchase. Ideal for construction, building, and window installation applications.
