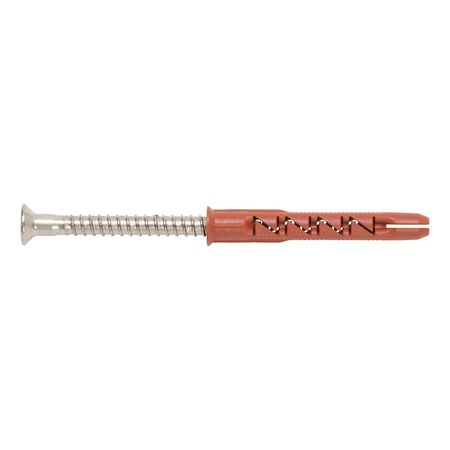

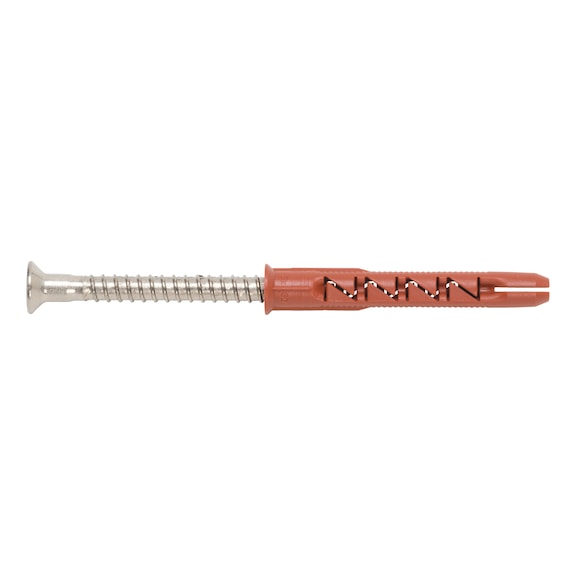

Plastic Frame Anchor W UR 8 | ETA Approved | Stainless Steel A4 | Push-Through Installation | by Wurth
The Plastic Frame Anchor W UR 8 is the first frame anchor with ETA approval, designed for reliable anchoring in concrete, perforated and solid brick masonry, and aerated concrete. With a push-through installation method, it offers immediate load-bearing capacity, making it ideal for construction professionals seeking efficiency and safety in their projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W UR 8 | ETA Approved | Stainless Steel A4 | Push-Through Installation | by Wurth
Brand: Wurth
SKU: 912808503
Alternatively Known As: Frame anchor, wall plug anchor, stainless steel anchor, universal frame anchor, W-UR 8 anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 30 mm
- Material of screw: Stainless steel A4
- Internal drive: AW30
- Approval: ETA-08/0190
- Type description: W-UR 8 A4, countersunk head screw
- Dimensions (H x L x W): 80mm x 80mm x 8mm
- Weight: 0.05 kg
Key Features
- First frame anchor with ETA approval.
- Tested and approved in more than 60 stone types and aerated concrete.
- Countersunk head screw made of A4 stainless steel.
- Universal frame anchor suitable for concrete, perforated and solid brick masonry, aerated concrete.
- Push-through installation with immediate load-bearing capacity, no waiting required.
- Virtually no movement of the wall plug body.
- Low screw-in torque of the plug screw.
- Slight spreading of the anchor for secure fixing.
- Two insertion depths available (50 mm and 70 mm).
- High load-bearing capacities with expansion in four directions.
- Improved load transfer in solid and hollow construction materials.
- Even, continuous load distribution across the entire expansion area.
- Hammer-in stop prevents premature expansion during installation.
- Pre-assembled wall plug body and special screw saves additional washers and prevents contact corrosion.
- Anchorage via friction locking between wall plug body and anchoring base.
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill size, insertion depth, and torque for optimal load-bearing performance.
Applications
- Concrete anchoring
- Perforated and solid brick masonry
- Aerated concrete fastening
- Hollow and solid construction materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste.
- ETA approval ensures compliance with safety and environmental standards.
Warranty Information
Wurth standard product warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring reliable and approved anchoring solutions.
