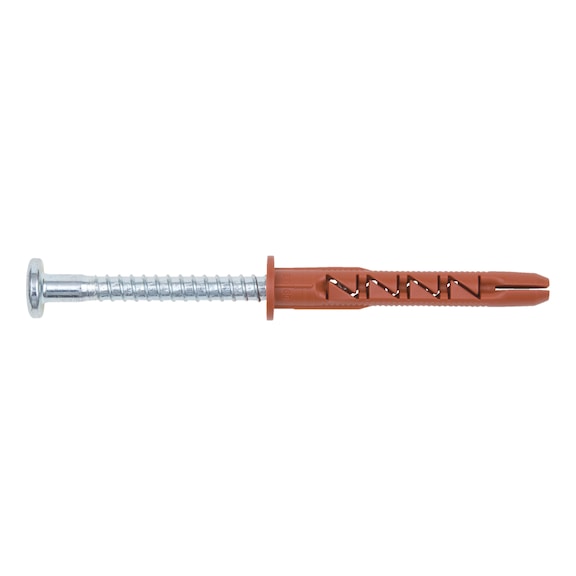

Plastic Frame Anchor W-UR F 8 | Galvanised Steel | 90+ Types Approved | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR F 8 is designed for reliable frame fixing in various materials, including concrete and masonry. With its galvanized steel construction and approval for over 90 types of stone, this anchor ensures immediate load-bearing capacity and durability. Ideal for professional installations, it simplifies window fitting and enhances structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR F 8 | Galvanised Steel | 90+ Types Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808802
Alternatively Known As: Plastic frame fixing anchor, W-UR F8 anchor, galvanised steel frame anchor, window frame anchor, masonry frame anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 10 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Approval: ETA-08/0190
- Type description: W-UR F 8, pan head screw
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Tested and approved for over 90 types of stone and autoclaved aerated concrete
- Galvanized steel domed screw with pan head, zinc plated
- Pass-through mounting with immediate load-bearing capacity, no waiting
- Low anchor screw insertion torque causing slight spreading with minimal sleeve movement
- Two insertion depths (50 + 70 mm) for various materials including concrete, solid and hollow bricks
- Expands in four directions for high load-bearing capacity
- Even, continuous load distribution across the entire expansion area
- Universal frame anchor for multiple construction materials
- Hammer-in stop prevents premature expansion during installation
- Special pre-assembled anchor and screw for easier installation
- Does not require an additional U-washer, preventing contact corrosion
- Improved load transfer via friction locking in solid and hollow construction materials
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct fixing and load-bearing performance.
Applications
- Fixing frames in concrete, hollow brick, solid brick, masonry, and autoclaved aerated concrete
- Window fitting with approval for mounting in the window overhang
- Suitable for over 90 types of stone and autoclaved aerated concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel construction ensures durability and long service life, reducing replacement waste
- Pre-assembled design reduces installation time and material waste
Warranty Information
Wurth offers a standard product warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Plastic Frame Anchor W-UR F 8 galvanised steel 50 PCS is available for immediate purchase. Ideal for construction and window frame fixing applications.
