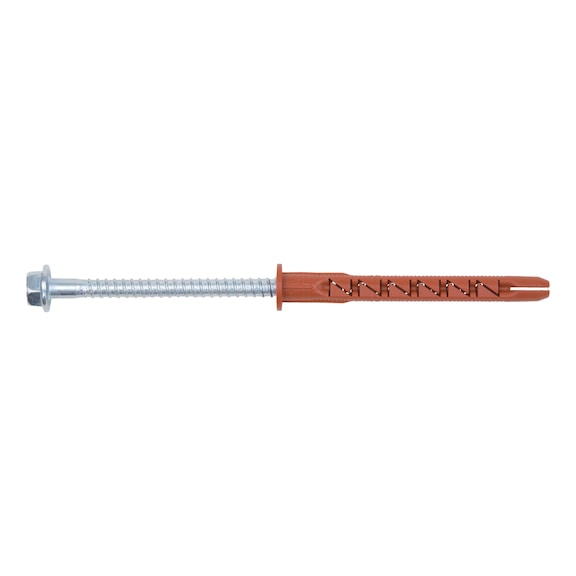

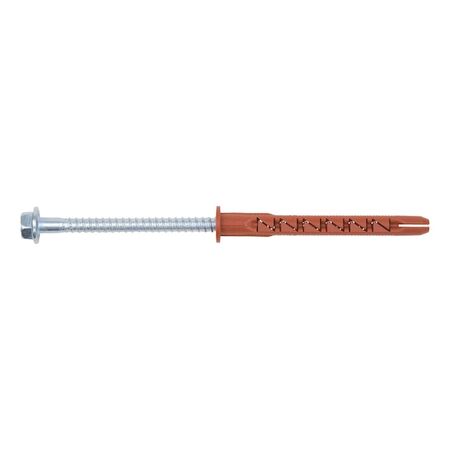

Plastic Frame Anchor W UR F 8 | Galvanised Steel | ETA Approved | @Pack of 50 | by Wurth
The Plastic Frame Anchor W UR F 8 is designed for versatile frame fixing in various masonry materials, including concrete and brick. With ETA approval and a robust galvanised steel construction, it ensures immediate load capacity and minimal installation torque. Ideal for professionals, this anchor provides reliable performance in both solid and hollow construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W UR F 8 | Galvanised Steel | ETA Approved | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808602
Alternatively Known As: Frame anchor, wall anchor, masonry anchor, plastic frame anchor, W-UR F8 anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 10 mm
- Material of screw: Steel
- Internal drive: AW25
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Approval: ETA-08/0190
- Type description: W-UR F 8, hexagonal bolt
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.05 kg
Key Features
- Extremely versatile frame anchor with ETA approval
- Tested and approved for over 90 types of stone and autoclaved aerated concrete
- Includes zinc plated steel hexagonal head screw and galvanised steel hexagon head bolt with lock washer
- Immediate load capacity with no waiting time
- Low anchor screw insertion torque with slight anchor expansion and minimal sleeve movement
- Expands in four directions for high load-bearing capacity
- Even, continuous load distribution across the entire expansion area
- Universal frame fixing for various masonry materials
- Hammer-in stop prevents premature expansion during installation
- Special pre-assembled anchor and screw for easier installation
- Does not require an additional U-washer, preventing contact corrosion
- Improved load transfer via friction locking between anchor sleeve and material
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct drill size, insertion depth, and load capacity compliance.
Applications
- Frame fixing in concrete, perforated brick, solid brick, masonry, and autoclaved aerated concrete
- Suitable for use in solid and hollow construction materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable galvanised steel components reduce the need for frequent replacements
- Efficient load distribution minimizes material stress and damage
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Plastic Anchor for Frames W UR F 8 is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
