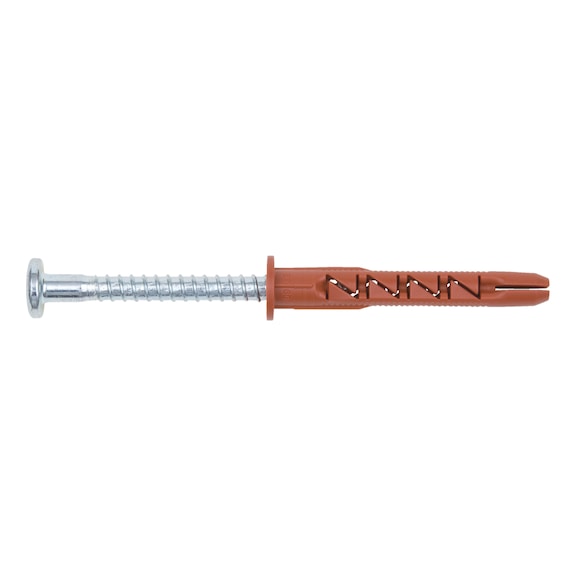

Plastic Frame Anchor W-UR F 8 | Galvanized Steel | High Load-Bearing Capacity | Pass-Through Mounting | @Pack of 50 | by Wurth
Plastic Frame Anchor W-UR F 8 is designed for high load-bearing capacity and pass-through mounting, making it ideal for securely fixing frames in stone and autoclaved aerated concrete. With its galvanized steel construction and immediate load-bearing capabilities, this anchor is perfect for professional installations in various masonry applications, ensuring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor W-UR F 8 | Galvanized Steel | High Load-Bearing Capacity | Pass-Through Mounting | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 912808803
Alternatively Known As: Plastic frame fixing anchor, W-UR F8 anchor, galvanised steel frame anchor, masonry frame anchor, window frame fixing anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter in component: 8.5 mm
- Attachment height: 30 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Pan head
- Approval: ETA-08/0190
- Type description: W-UR F 8, pan head screw
- Dimensions (H x L x W): 80mm x 80mm x 8mm
- Weight: 0.1 kg
Key Features
- Tested and approved for over 90 types of stone and autoclaved aerated concrete
- Galvanized steel domed screw with pan head, zinc plated
- Pass-through mounting with immediate load-bearing capacity, no waiting
- Low anchor screw insertion torque causing slight spreading with minimal sleeve movement
- Two insertion depths (50 + 70 mm) for various materials
- Expands in four directions for high load-bearing capacity
- Even, continuous load distribution across the entire expansion area
- Universal frame anchor for concrete, hollow brick, solid brick, masonry, and autoclaved aerated concrete
- Hammer-in stop prevents premature expansion during installation
- Special pre-assembled anchor and screw for easier installation
- Does not require additional U-washer, preventing contact corrosion
- Improved load transfer in solid and hollow construction materials via friction locking
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct fixing and load-bearing capacity.
Applications
- Fixing frames in stone and autoclaved aerated concrete
- Window fitting with approval for mounting in window overhang
- Suitable for concrete, solid brick, hollow brick, sand-lime brick, perforated sand-lime brick, solid concrete brick, lightweight concrete brick
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised steel components provide corrosion resistance, extending product life and reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for construction and building applications requiring secure frame fixing.
