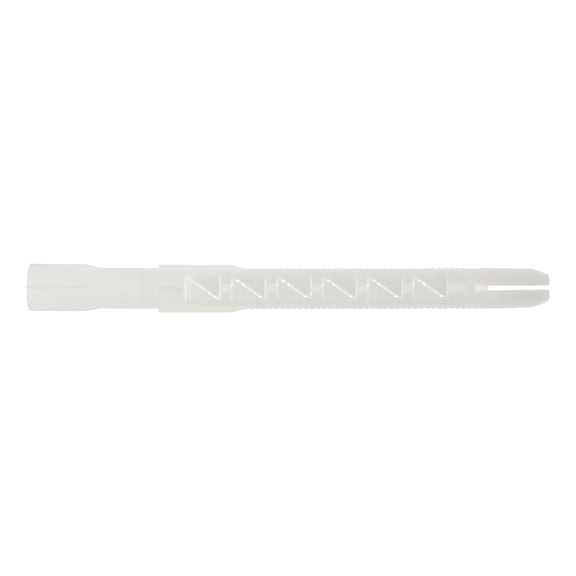

Plastic Frame Anchor without Collar | 8mm Diameter | High-Quality Polyamide | @Pack of 150 | by Wurth
Plastic Frame Anchor without Collar is designed for reliable fastening in concrete and brick, featuring an 8mm diameter and 100mm length. Built for both indoor and outdoor applications, this high-quality polyamide anchor offers excellent load-bearing capacity and anti-rotation features, making it ideal for construction and building projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Anchor without Collar | 8mm Diameter | High-Quality Polyamide | @Pack of 150 | by Wurth
Brand: Wurth
SKU: 912808004
Alternatively Known As: Plastic wall anchor, Frame fixing anchor, Nylon anchor, Expansion anchor without collar
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Screw diameter: 6 mm
- Drill hole depth: 80 mm
- Type description: W-RD 8, without collar
- Dimensions (H x L x W): 100mm x 8mm x 8mm
- Weight: 0.05 kg
Key Features
- Expansion in four directions for excellent application and high working loads
- Anti-rotation lock prevents spinning of the anchor sleeve
- Hammer-in stop prevents premature expansion during installation
- Immediate load-bearing capacity for time savings
- Anchor sleeve made of high-quality polyamide, halogen and silicone free
- Thermally stable from -40°C to +80°C
- Natural colour without additional dyes or coatings
- Flexible application with in-place installation facilitating and speeding up installation
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole size and proper anchor setting for maximum load capacity.
Applications
- Suitable for fixing in concrete, solid brick, and hollow brick
- Ideal for indoor and outdoor use with stainless steel screws
- Used in construction and building fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from halogen and silicone free materials
- Durable and reusable reducing waste
- Thermally stable for long-lasting performance
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
The Wurth W RD Plastic Frame Anchor without Collar 8x100mm is available for immediate purchase, ideal for construction and building fastening applications.
