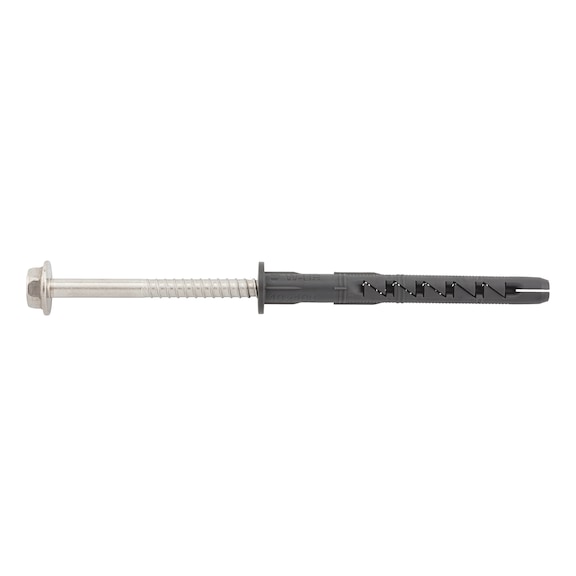

Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | Fire Resistance F30 | @Pack of 40 | by Wurth
Plastic frame fixing with A4 stainless steel hexagon head bolt is designed for reliable anchorage in construction projects. This universal anchor features a fire resistance rating of F30 and is suitable for over 100 building materials, ensuring excellent stability and load-bearing capacity. Ideal for professional installation, it simplifies frame fixing with its pre-assembled design and minimal installation torque.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | Fire Resistance F30 | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810703
Alternatively Known As: Plastic Frame Anchor, SHARK UR Anchor, Stainless Steel Hex Bolt Fixing, Frame Fixing Bolt, Polyamide Anchor Sleeve Fixing
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Max. attachment height: 45 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Stainless steel A4
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 115mm x 10.5mm x 10mm
- Weight: 0.34 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested and approved for over 100 building materials
- Anchor teeth expand in four directions for excellent stability
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Low installation torque and minimal spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for time-saving installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure correct embedment depth and secure fixing according to building codes.
Applications
- Fixing frames in construction and building projects
- Suitable for use with over 100 proven building materials including concrete and masonry
- Ideal for load-bearing applications requiring reliable and versatile anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High load capacity minimizes material waste in construction
- Polyamide sleeve is recyclable and reduces environmental impact
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
