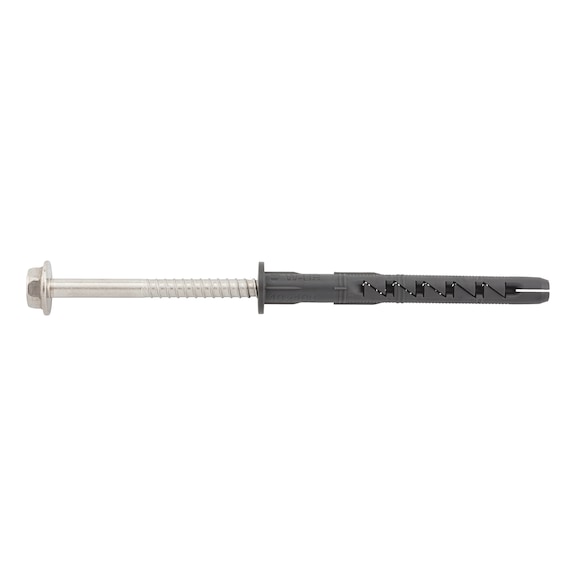

Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt | Universal Anchor Geometry | Fire Resistance F30 | @Pack of 40 | by Wurth
Plastic frame fixing with A4 stainless steel hexagon head bolt is designed for reliable fastening in concrete and masonry. With a unique universal anchor geometry and fire resistance rating of F30, it ensures excellent stability and load-bearing capacity across over 100 building materials. Ideal for construction professionals, this fixing solution simplifies installation with pre-assembled components and a strong anti-rotation lock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with A4 Stainless Steel Hexagon Head Bolt | Universal Anchor Geometry | Fire Resistance F30 | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810705
Alternatively Known As: Plastic frame anchor, SHARK UR fixing bolt, stainless steel hex bolt anchor, frame fixing anchor, polyamide anchor bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max. attachment height: 90 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Stainless steel A4
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 40mm x 160mm x 160mm
- Weight: 1.3 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested and approved for more than 100 building materials
- Anchor teeth expand in four directions for excellent stability
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Low installation torque and minimal spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for time-saving installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct embedment depth and secure fixing according to building codes.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Construction and building fastening applications requiring reliable load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High load capacity minimizes material waste in construction
- Pre-assembled components reduce installation time and energy use
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
Wurth SHARK UR plastic frame fixing with A4 stainless steel hexagon head bolt 40 PCS is available for immediate purchase, ideal for construction and building fastening applications.
