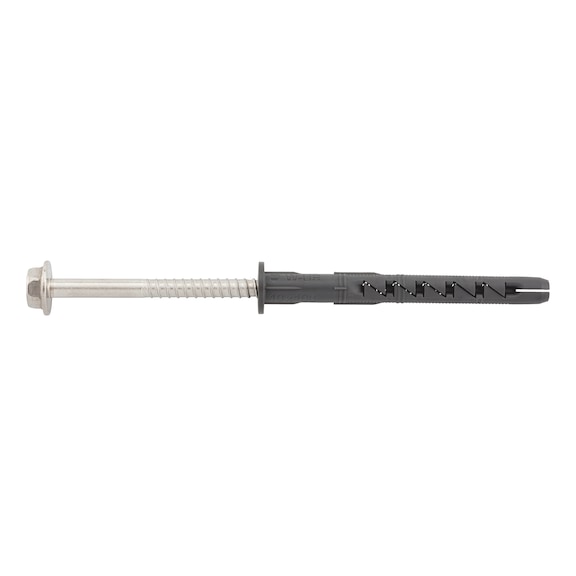

Plastic Frame Fixing | A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | @Pack of 40 | by Wurth
Plastic frame fixing with A4 stainless steel hexagon head bolt and universal anchor design—ideal for construction and building applications. Built for professionals, this fixing offers immediate load-bearing capacity and is suitable for over 100 building materials, ensuring reliable performance in concrete and masonry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing | A4 Stainless Steel Hexagon Head Bolt | Universal Anchor | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810702
Alternatively Known As: Plastic frame anchor, SHARK UR fixing bolt, stainless steel hex bolt anchor, universal frame fixing anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Stainless steel A4
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10 A4, hexagonal bolt
- Dimensions (H x L x W): 100mm x 10.5mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven and modern building materials
- Diameters 8 and 10 mm approved for 105 different base materials
- Improved safety with expert fire behaviour assessment
- Anchor teeth expand in four directions for excellent stability
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Low installation torque and minimal spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for time savings
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
Professional Installation Requirements
- Installation should be performed by qualified professionals following ETA guidelines and using appropriate tools for drilling and fixing.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Use in construction requiring reliable load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High load capacity minimizes material waste
- Polyamide sleeve is recyclable
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth SHARK UR plastic frame fixing with A4 stainless steel hexagon head bolt 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
