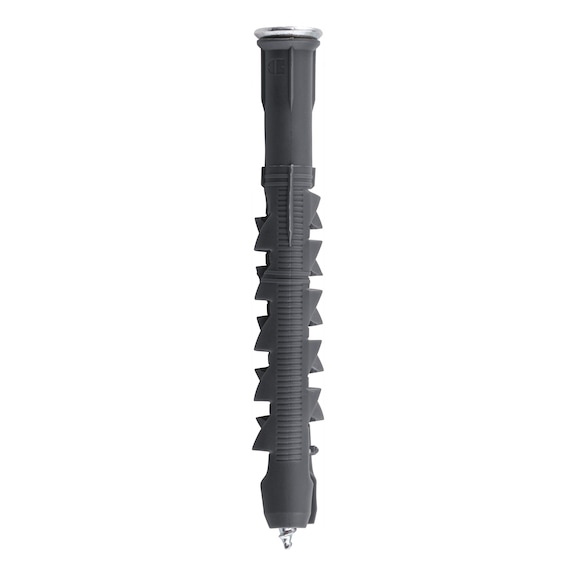

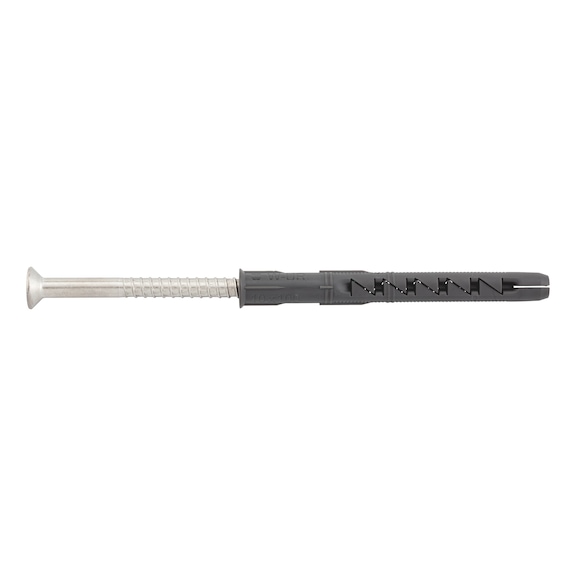

Plastic Frame Fixing with A4 Stainless Steel Screw | Universal Anchor | Fire Resistance F30 | @Pack of 50 | by Wurth
Plastic frame fixing with A4 stainless steel countersunk screw is designed for universal anchoring in concrete and masonry. With a fire resistance rating of F30 and immediate load-bearing capacity, it's perfect for construction applications requiring secure fixings. The high-quality polyamide anchor sleeve ensures durability and efficient installation, making it ideal for professional tradespeople.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with A4 Stainless Steel Screw | Universal Anchor | Fire Resistance F30 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810503
Alternatively Known As: Plastic frame anchor, SHARK UR anchor, stainless steel countersunk screw fixing, universal frame fixing anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Max. attachment height: 45 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Stainless steel A4
- Internal drive: AW40
- Screw surface: Plain
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR 10 A4, countersunk head screw
- Dimensions (H x L x W): 115mm x 10.5mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven building materials
- High-quality polyamide anchor sleeve with strong anti-rotation lock
- Expansion in four directions for high working loads
- Pre-assembled anchor sleeve and special screw for quick installation
- Hammer-in stop prevents premature expansion during installation
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified tradespeople is recommended to ensure correct embedment depth and secure fixing performance.
Applications
- Suitable for fixing frames in concrete and masonry
- Universal anchor for over 100 building materials
- Ideal for construction and building applications requiring secure load-bearing fixings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High-quality polyamide sleeve and stainless steel screw ensure long service life
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard terms and conditions.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with A4 Stainless Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
