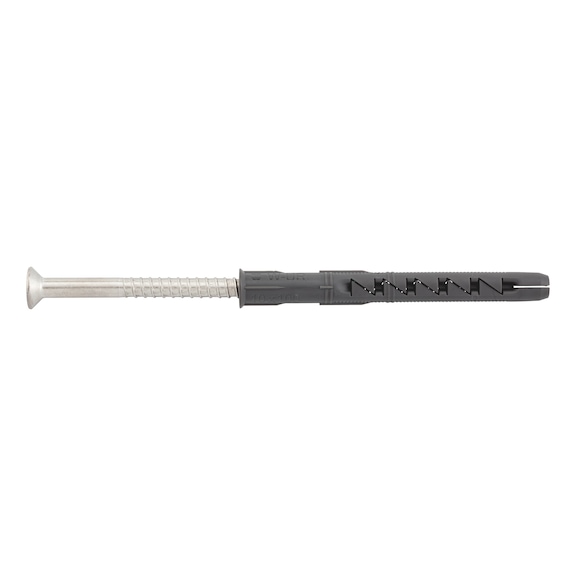

Plastic Frame Fixing with A4 Stainless Steel Screws | 8mm Diameter | Fire Resistance F30 | @Pack of 50 | by Wurth
Plastic frame fixing with A4 stainless steel screws, featuring an 8mm diameter and fire resistance rating of F30. This versatile anchor is ideal for universal frame fixing across over 100 building materials, ensuring strong performance in concrete and masonry applications. Designed for quick installation with a pre-assembled anchor sleeve, it provides immediate load-bearing capacity and durability for construction and building anchoring needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with A4 Stainless Steel Screws | 8mm Diameter | Fire Resistance F30 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912808502
Alternatively Known As: Plastic Frame Anchor, SHARK UR Anchor, Stainless Steel Countersunk Screw Fixing, Universal Frame Fixing Anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Fire resistance rating: F30
- Material of screw: Stainless steel A4
- Internal drive: AW30
- Surface of screw: Plain
- Approval: ETA-08/0190
- Type description: W-UR 8 A4, countersunk head screw
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.5 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity
- Tested and approved for more than 100 building materials
- Expansion in four directions with claw anchorage for high working loads
- High-quality polyamide anchor sleeve with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for quick installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper anchoring and compliance with building standards.
Applications
- Universal frame fixing for over 100 building materials
- Suitable for concrete and masonry with fire behaviour assessment
- Ideal for construction and building anchoring needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High-quality polyamide and stainless steel components ensure long service life
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with A4 Stainless Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building anchoring applications.
