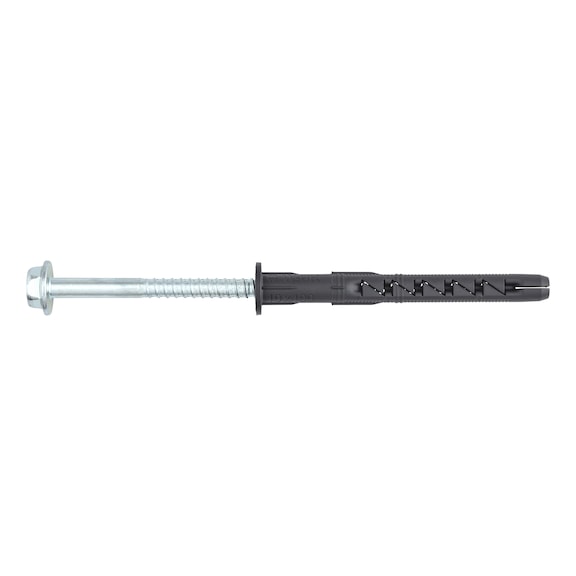

Plastic Frame Fixing SHARK UR | Zinc Plated Hexagon Head Bolt | Universal Frame Fixing | Fire Resistance F30 | @Pack of 40 | by Wurth
Plastic Frame Fixing SHARK UR is designed for secure anchorage in concrete and masonry, featuring a zinc plated hexagon head bolt and a fire resistance rating of F30. Ideal for construction projects requiring reliable frame fixing, this product offers immediate load-bearing capacity and is tested for over 100 building materials, ensuring optimal performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing SHARK UR | Zinc Plated Hexagon Head Bolt | Universal Frame Fixing | Fire Resistance F30 | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810606
Alternatively Known As: Plastic Frame Anchor, SHARK UR Frame Fixing, Hex Bolt Frame Fixing, Polyamide Anchor Bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 185 mm
- Max. attachment height: 115 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw material: Steel
- Internal drive: AW40
- Screw surface: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 185mm x 40mm x 40mm
- Weight: 1.3 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested and approved for over 100 building materials
- Anchor teeth expand in four directions for optimal anchorage
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Low installation torque and minimal spinning of anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for time savings
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper embedment and load-bearing performance.
Applications
- Suitable for fixing frames in concrete and masonry
- Ideal for use in over 100 building materials
- Applicable in construction and building projects requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High load capacity minimizes material waste in construction
- Pre-assembled components reduce installation time and energy use
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard terms and conditions.
Available Now
The Wurth SHARK UR Plastic Frame Fixing 40 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame anchorage.
