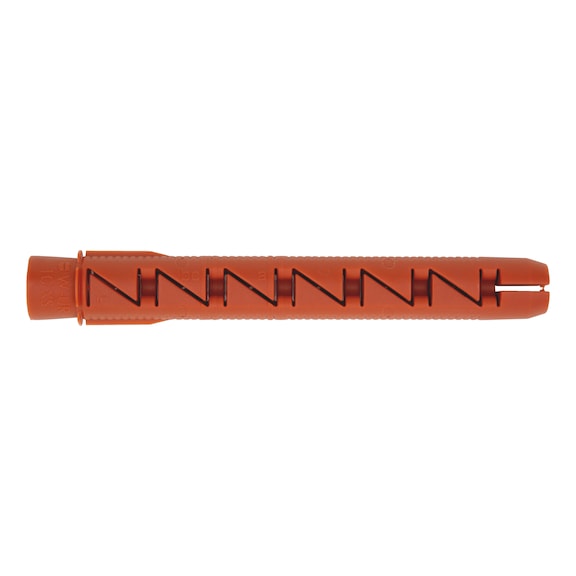

Plastic Frame Fixing W UR 10 XS | 10mm Diameter | DIBt Approved | @Pack of 100 | by Wurth
Plastic Frame Fixing W UR 10 XS is designed for fast and stable installation in various brick types, including sand-lime and solid bricks. With a 10mm diameter and DIBt approval, it ensures immediate load-bearing capacity, making it ideal for construction and building applications. Perfect for professionals seeking reliable and removable anchorage solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing W UR 10 XS | 10mm Diameter | DIBt Approved | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 912810900
Alternatively Known As: Plastic Frame Anchor, Frame Fixing Anchor, WUR 10 XS Plastic Fixing, Wurth Frame Fixing, Plastic Wall Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 78 mm
- Nominal drill-bit diameter: 10 mm
- Drill hole depth: 80 mm
- Approval: DIBt Z-21.2-2017
- Suitable for sand-lime brick, solid brick, vertically perforated brick (min. 2 walls), softwood
- No pre-drilling required for softwood
- Plastic frame anchor minimum length: 80 mm
- Dimensions (H x L x W): 70mm x 70mm x 10mm
- Weight: 0.05 kg
Key Features
- Fast, precise, and stable installation due to precisely fitting frame fixing
- Time-saving due to immediate load-bearing capacity
- Suitable for removable anchorage
- Approved under DIBt Z-21.2-2017
- Compatible with various brick types including sand-lime, solid, and perforated bricks
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with local construction conditions and safety standards.
Applications
- Use in solid and perforated blocks
- Concrete applications in combination with AMO-Combi screw
- Suitable for removable anchorage in window frame installations
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Supports sustainable building practices by ensuring secure and long-lasting installations
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Plastic Frame Fixing W UR 10 XS ANC 10x70 100 PCS is available for immediate purchase, ideal for construction and building applications requiring secure frame fixing.
