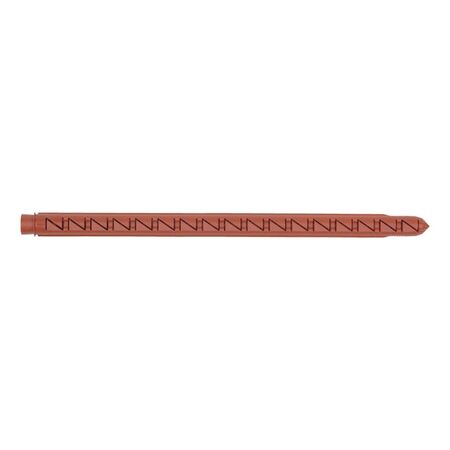

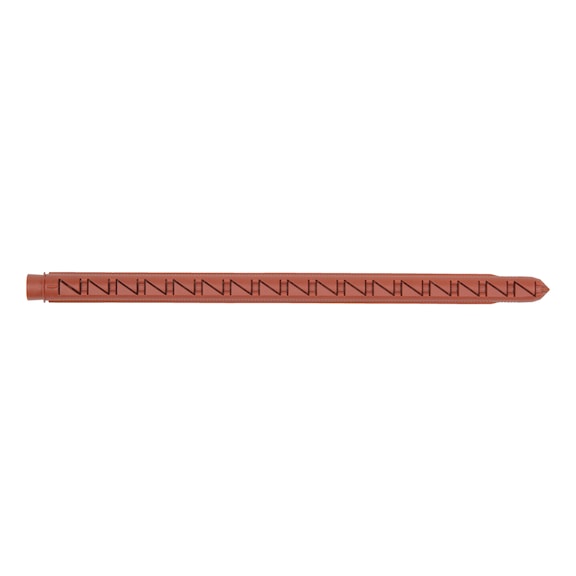

Plastic Frame Fixing W UR 10 XXL | 10mm Diameter | 208mm Length | @Pack of 100 | by Wurth
Plastic Frame Fixing W UR 10 XXL is designed for fast and stable installations, featuring a 10mm diameter and 208mm length. Ideal for window installations in demanding perforated blocks, this fixing offers immediate load-bearing capacity and is suitable for various materials, including softwood. Perfect for professional tradespeople looking for reliable anchorage solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing W UR 10 XXL | 10mm Diameter | 208mm Length | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 912810901
Alternatively Known As: Plastic Frame Anchor, Window Frame Fixing, W UR 10 XXL Frame Fixing, AMO-Combi Frame Fixing
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 208 mm
- Nominal drill-bit diameter: 10 mm
- Drill hole depth: 210 mm
- Approval: DIBt Z-21.2-2017
- Suitable for sand-lime brick, solid brick, vertically perforated brick (min. 2 walls), softwood
- No pre-drilling required for softwood
- Plastic frame anchor minimum length: 210 mm for W-UR 10 XXL
- Dimensions (H x L x W): 208mm x 10mm x 10mm
- Weight: 0.2 kg
Key Features
- Fast, precise, and stable installation due to precisely fitting frame fixing
- Time-saving due to immediate load-bearing capacity
- Suitable for removable anchorage
- Optimal fastening for demanding perforated blocks with solid webs and large chambers anchoring at least 2 webs
- Part of the AMO-Combi system
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper anchorage and compliance with building standards.
Applications
- Window installation in perforated blocks with small chambers and thin webs
- Fastening plastic and glazed plastic doors without lateral supports or spacer blocks
- Suitable for demanding perforated blocks with solid webs and large chambers
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables durable and secure installations reducing the need for repairs and replacements
- Supports efficient construction practices minimizing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plastic Frame Fixing W UR 10 XXL ANC is available for immediate purchase, ideal for window installation in perforated masonry and plastic frame anchoring applications.
