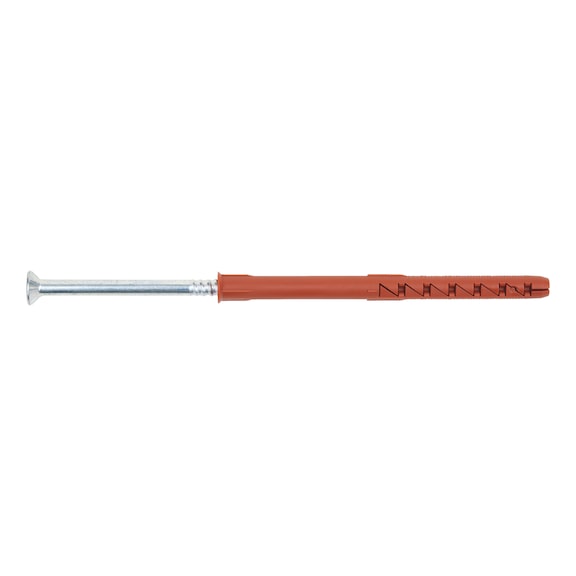

Plastic Frame Fixing W UR 10 | Zinc Plated Steel Screw | Countersunk Head | @Pack of 50 | by Wurth
The W UR 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry, autoclaved aerated concrete, and concrete applications. Featuring a zinc plated steel screw with a countersunk head, it ensures immediate load-bearing capacity and minimal installation work. Ideal for professionals, this fixing is earthquake-proof and complies with structural design standards, making it a reliable choice for various construction needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing W UR 10 | Zinc Plated Steel Screw | Countersunk Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5911010002
Alternatively Known As: Plastic frame fixing anchor, SymCon anchor screw, Zinc plated countersunk screw anchor, Wurth anchor fixing
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Attachment height: 40 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of the screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-11/0309
- Type description: W-UR 10 SymCon, countersunk head screw
- Temperature ratings: 50°C / 80°C
- Dimensions (H x L x W): 80mm x 10.5mm x 10mm
- Weight: 0.05 kg
Key Features
- Special anchor geometry with immediate load-bearing capacity
- ETA assessment for masonry, autoclaved aerated concrete, and concrete
- Optimal installation properties with low installation torque and expansion
- Virtually no spinning of the anchor sleeve
- Reliable follow-up expansion capability due to ingenious anchor geometry
- Earthquake-proof anchoring tested and approved
- Minimal installation work with pre-assembled anchor sleeve and special screw
- No additional U-washer required, preventing contact corrosion
- Virtually no undercutting due to optimal compression of the anchor sleeve
- Improved load transmission through even, continuous load transfer across the entire expansion area
- Multiple embedment depths for concrete and masonry
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper anchoring and compliance with structural requirements.
Applications
- Masonry fixing
- Autoclaved aerated concrete anchoring
- Concrete anchoring
- Earthquake-proof anchoring in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Prevents corrosion, extending product lifespan and reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth W UR 10 SymCon plastic frame fixing is available for immediate purchase, ideal for secure anchoring in masonry, concrete, and autoclaved aerated concrete applications.
