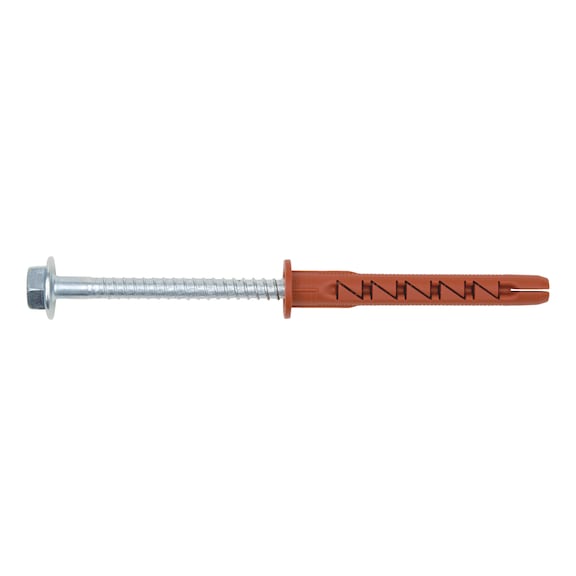

Plastic Frame Fixing W UR F 10 Hexagon Head Bolt | Zinc Plated Steel | ETA Approved | @Pack of 40 | by Wurth
Plastic Frame Fixing W UR F 10 Hexagon Head Bolt is designed for reliable anchoring in stone and autoclaved aerated concrete. With ETA approval and a friction locking mechanism, it ensures immediate load-bearing capacity without waiting. Ideal for construction projects requiring high load-bearing anchors, this bolt is perfect for both solid and hollow materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing W UR F 10 Hexagon Head Bolt | Zinc Plated Steel | ETA Approved | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 912810606
Alternatively Known As: Plastic frame fixing bolt, hex head anchor bolt, W UR F 10 fixing bolt, zinc plated hex bolt, construction anchor bolt
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 185 mm
- Max. attachment height: 115 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of the screw: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 185mm x 10.5mm x 10mm
- Weight: 0.15 kg
Key Features
- ETA approval for more than 60 types of stone and autoclaved aerated concrete
- Friction locking between anchor sleeve and base material
- Anchor sleeve made from high-quality polyamide
- Immediate load-bearing capacity with no waiting
- Virtually no movement of the anchor sleeve
- Low prevailing torque of the anchor screw
- Slight expansion of the anchor for high load-bearing capacities
- Expansion in four directions
- Hammer-in stop prevents premature expansion during installation
- Low assembly workload with pre-assembled anchor sleeve and special screw
- No additional U washer required, preventing contact corrosion
- Improved load transfer in solid and hollow construction materials
- Installation temperature range: anchoring base ≥ -20 °C, anchor sleeve > 0 °C
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct anchoring and compliance with safety standards.
Applications
- Fixing in stone and autoclaved aerated concrete
- Suitable for solid and hollow construction materials
- Use in construction requiring high load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Corrosion resistance extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Plastic Frame Fixing W UR F 10 Hexagon Head Bolt is available for immediate purchase, ideal for construction and building applications requiring reliable and approved fixing solutions.
