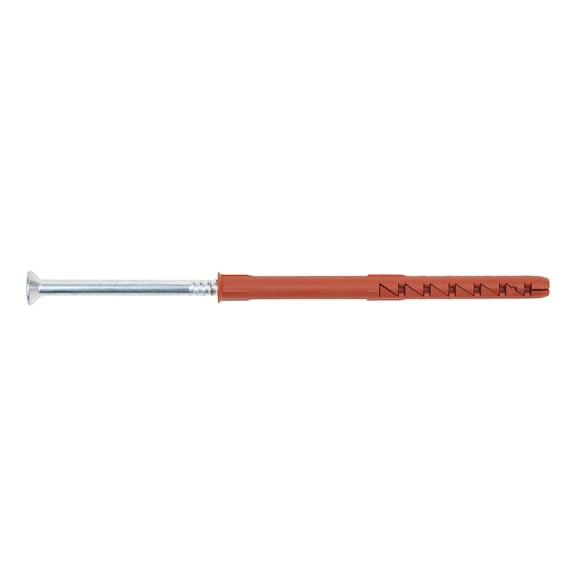

Plastic Frame Fixing W UR 10 | Zinc Plated Steel Screw | Earthquake-Proof | @Pack of 50 | by Wurth
The W UR 10 SymCon Plastic Frame Fixing is designed for secure anchoring in masonry and concrete, featuring a zinc plated steel screw and earthquake-proof capabilities. Ideal for professional installations, this pack of 50 ensures reliable performance with minimal installation work, making it perfect for construction and renovation projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing W UR 10 | Zinc Plated Steel Screw | Earthquake-Proof | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5911010005
Alternatively Known As: Plastic frame fixing anchor, SymCon anchor screw, Zinc plated countersunk screw anchor, Wurth anchor fixing
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 135 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Attachment height: 95 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of the screw: Zinc plated
- Head type: Countersunk head
- Approval: ETA-11/0309
- Temperature resistance: 50°C / 80°C
- Dimensions (H x L x W): 135mm x 135mm x 10mm
- Weight: 0.15 kg
Key Features
- Special anchor geometry for immediate load-bearing capacity with ETA assessment
- Optimal installation properties with low installation torque and expansion
- Reliable follow-up expansion capability due to ingenious anchor geometry
- Earthquake-proof anchoring in concrete, tested and approved
- Minimal installation work as anchor sleeve and special screw are pre-assembled
- No additional U-washer required, preventing contact corrosion
- Virtually no undercutting due to optimal compression of the anchor sleeve
- Improved load transmission through even, continuous load transfer across the entire expansion area
- Multiple embedment depths for concrete and masonry
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure proper anchoring and compliance with structural requirements.
Applications
- Masonry anchoring
- Autoclaved aerated concrete fixing
- Concrete fixing
- Earthquake-proof anchoring in concrete
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Zinc plating provides corrosion resistance, extending product life and reducing environmental impact
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth W UR 10 SymCon plastic frame fixing is available for immediate purchase, ideal for secure anchoring in masonry, concrete, and autoclaved aerated concrete applications.
