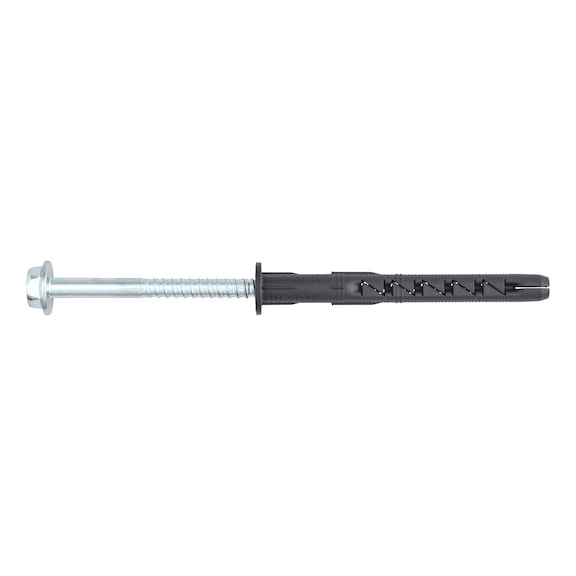

Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Anchor | Fire Resistant | @Pack of 40 | by Wurth
Plastic Frame Fixing with zinc plated steel hexagon head bolts is designed for secure anchorage in various building materials, including concrete and masonry. Ideal for construction and renovation projects, this universal frame fixing offers immediate load-bearing capacity and is tested for over 100 building materials, ensuring reliability and safety in structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing | Zinc Plated Steel Hexagon Head Bolt | Universal Anchor | Fire Resistant | @Pack of 40 | by Wurth
Brand: Wurth
SKU: 5912810603
Alternatively Known As: Plastic Frame Fixing Anchor, SHARK UR Frame Fixing, Hexagon Head Bolt Anchor, Wurth Frame Fixing, Universal Frame Anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Max. attachment height: 45 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Hexagon head
- Drill hole depth: 80 mm
- Approval: ETA-08/0190
- Type description: W-UR F 10, hexagonal bolt
- Dimensions (H x L x W): 115mm x 115mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment for over 100 building materials
- Tested and approved for 105 different base materials
- Improved safety with expert fire behaviour assessment in concrete and masonry
- Anchor teeth expand in four directions for optimal anchorage
- Friction locking between anchor sleeve and base material
- High working loads due to four-direction expansion
- Even, continuous load transfer across the entire expansion area
- Low installation torque prevents spinning of the anchor sleeve
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure correct embedment depth and secure fixing according to building codes.
Applications
- Suitable for fixing frames in various building materials including concrete and masonry
- Ideal for construction and renovation projects requiring secure and reliable anchorage
- Used in structural and non-structural applications where immediate load-bearing capacity is needed
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Pre-assembled components minimize installation waste
- Improved load distribution reduces structural damage and material waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
Wurth SHARK UR Plastic Frame Fixing is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing solutions.
