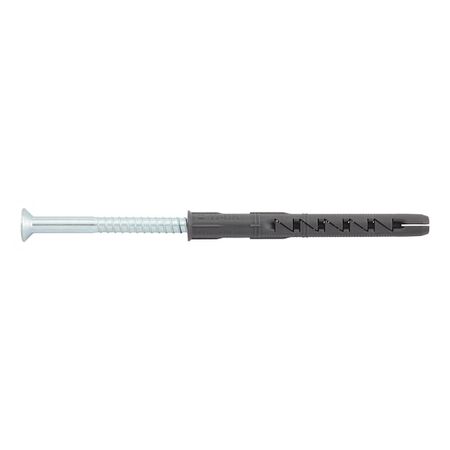

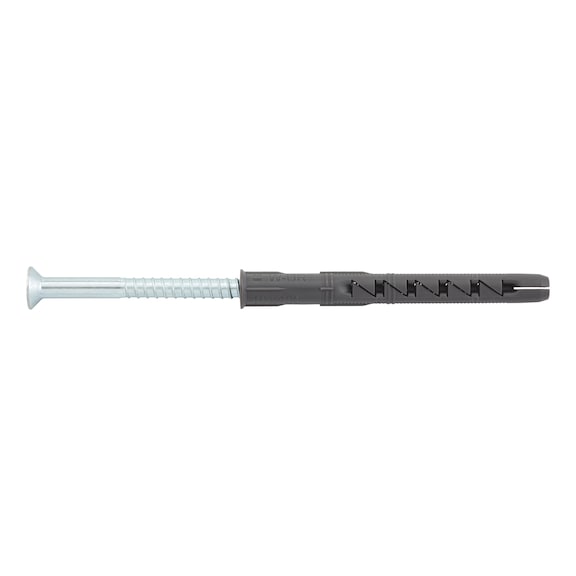

Plastic Frame Fixing with Zinc Plated Steel Screw | 10mm Diameter | 80mm Length | High Load Capacity | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel countersunk head screw is designed for secure anchorage in concrete and masonry. With a 10mm diameter and 80mm length, it offers immediate load-bearing capacity and is suitable for over 100 building materials. Ideal for construction professionals, this fixing ensures durability and compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screw | 10mm Diameter | 80mm Length | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810401
Alternatively Known As: Plastic frame fixing anchor, SHARK UR anchor, Zinc plated countersunk screw fixing, Frame fixing screw anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 80 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw diameter: 7 mm
- Screw length: 85 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of the screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. height of fixture: 10-30 mm
- Approval: ETA-08/0190
- Dimensions (H x L x W): 80mm x 85mm x 10mm
- Weight: 0.34 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven and modern building materials
- High load capacity due to expansion in four directions
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for minimal installation work
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct embedment and load-bearing performance.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Construction and building applications requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available now for immediate purchase. Ideal for construction and building applications requiring secure frame fixing.
