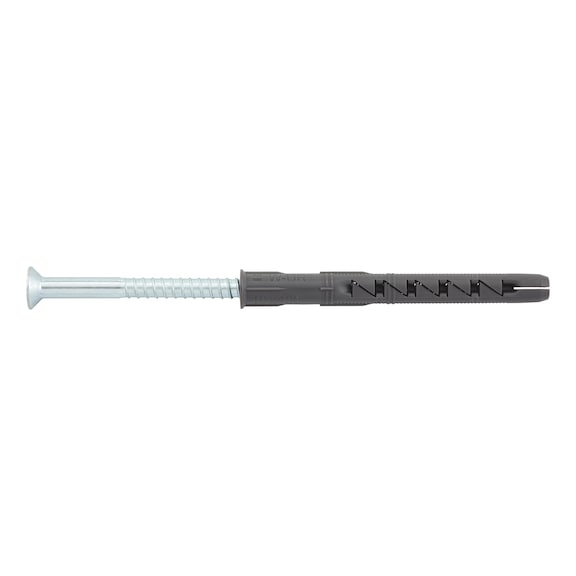

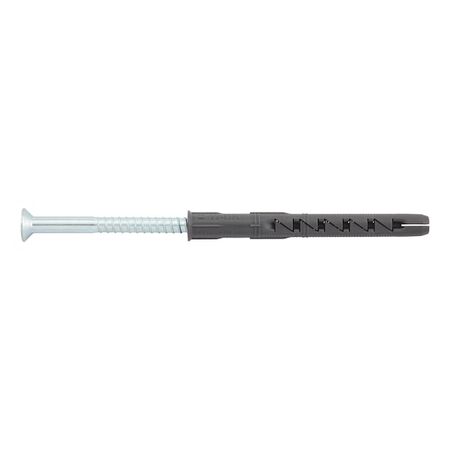

Plastic Frame Fixing with Zinc Plated Steel Screw | 10mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Plastic frame fixing with a 10mm diameter and high load capacity, designed for secure anchorage in concrete and masonry. Ideal for construction projects, this fixing features a zinc plated steel screw for durability and immediate load-bearing capacity, making it perfect for various building materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screw | 10mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810404
Alternatively Known As: Plastic frame anchor, SHARK UR fixing, zinc plated countersunk screw anchor, frame fixing anchor, W-UR 10 anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 135 mm
- Max. attachment height: 85 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw diameter: 7 mm
- Screw length: 140 mm
- Screw material: Steel
- Internal drive: AW40
- Screw surface: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. fixture height: 65-85 mm
- Approval: ETA-08/0190
- Dimensions (H x L x W): 140mm x 135mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for over 100 building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct embedment depth and secure fixing according to building standards.
Applications
- Suitable for fixing frames in concrete and masonry
- Versatile use with over 100 proven building materials
- Ideal for construction and building projects requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building frame fixing applications.
