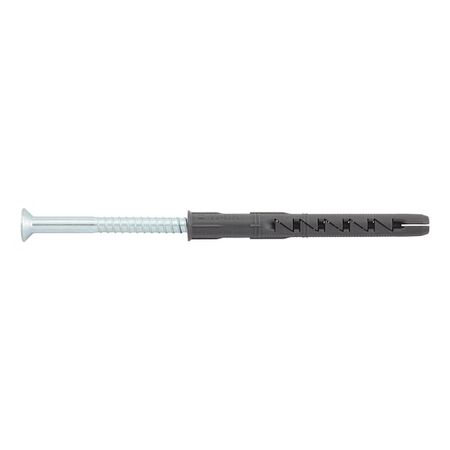

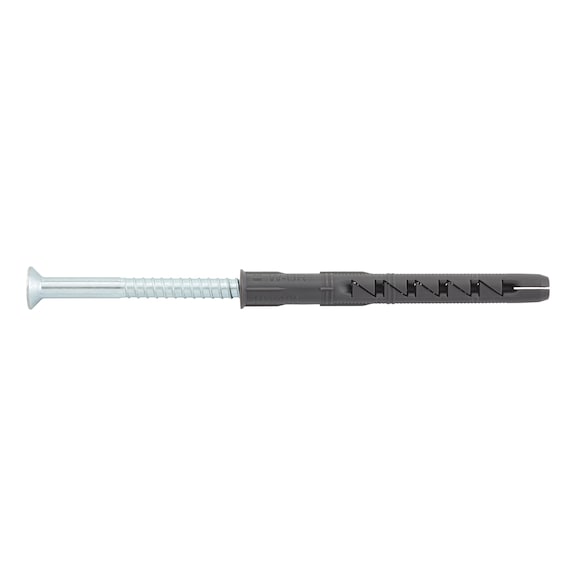

Plastic Frame Fixing with Zinc Plated Steel Screw | High Load Capacity | Fire Resistance F30 | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel screw offers high load capacity and fire resistance F30, making it ideal for securing frames in concrete and masonry. Designed for over 100 building materials, this fixing solution ensures reliable performance in construction applications, with a pre-assembled anchor sleeve for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screw | High Load Capacity | Fire Resistance F30 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810403
Alternatively Known As: Plastic frame anchor, SHARK UR anchor, Zinc plated countersunk screw fixing, Frame fixing anchor, Polyamide anchor with steel screw
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 115 mm
- Max. attachment height: 65 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw diameter: 7 mm
- Screw length: 120 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. height of fixture: 45-65 mm
- Approval: ETA-08/0190
- Dimensions (H x L x W): 115mm x 120mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven and modern building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide with strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure correct embedment depth and secure fixing according to building codes and ETA approval.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Construction and building applications requiring high load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building applications requiring reliable frame fixing.
