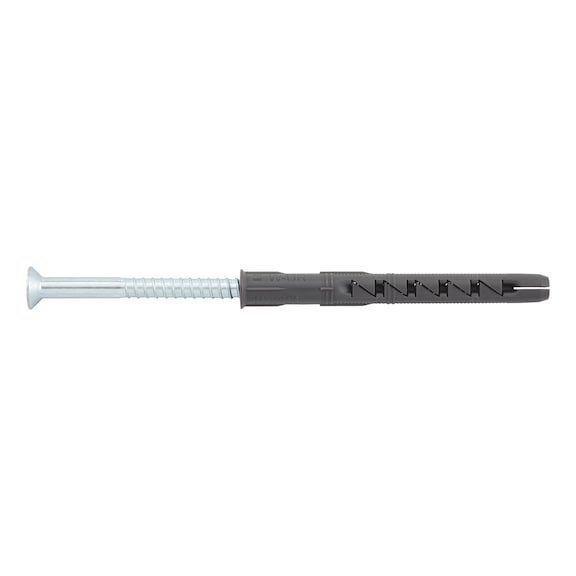

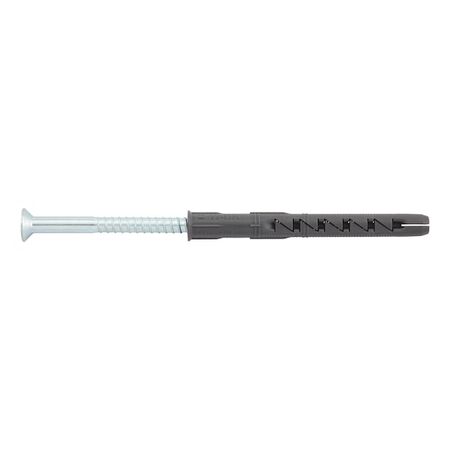

Plastic Frame Fixing with Zinc Plated Steel Screw | High Load Capacity | Universal Anchor Geometry | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel countersunk head screw is designed for high load capacity and universal anchor geometry, making it ideal for construction and building applications. With immediate load-bearing capacity and tested for over 100 building materials, this pack of 50 ensures secure and reliable frame fixings in concrete and masonry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screw | High Load Capacity | Universal Anchor Geometry | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810405
Alternatively Known As: Plastic Frame Fixing Anchor, SHARK UR Anchor, Zinc Plated Countersunk Screw Fixing, Frame Fixing Kit
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 160 mm
- Max. attachment height: 110 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw diameter: 7 mm
- Screw length: 165 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth (h0): 80 mm
- Drill hole depth (h1): 60 mm
- Min./max. height of fixture: 90-110 mm
- Approval: ETA-08/0190
- Type description: W-UR 10, countersunk head screw
- Dimensions (H x L x W): 165mm x 160mm x 10mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for over 100 building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct embedment depth and secure fixing according to building standards.
Applications
- Suitable for fixing frames in concrete, masonry, and over 100 proven building materials
- Ideal for construction and building applications requiring secure load-bearing fixings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth provides standard product warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building frame fixing applications.
