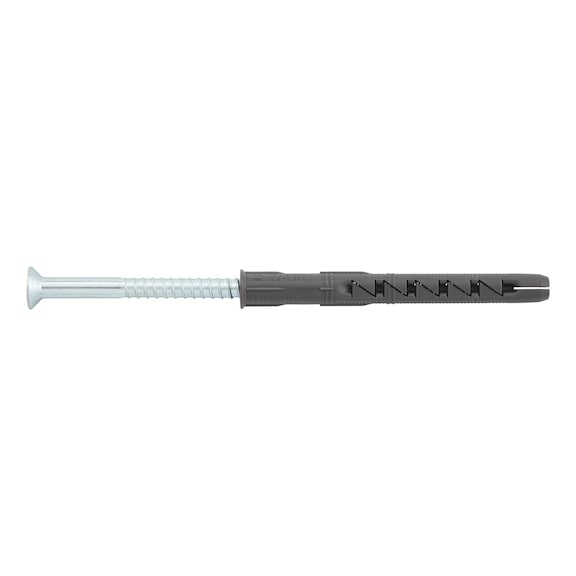

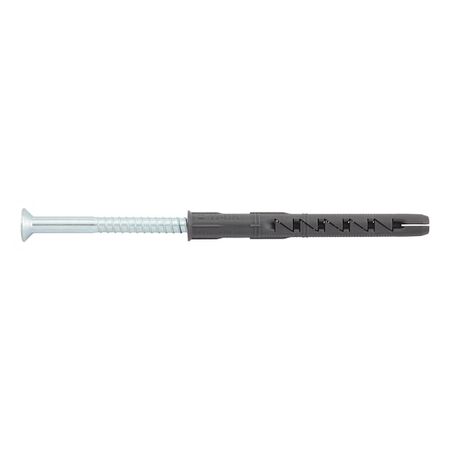

Plastic Frame Fixing with Zinc Plated Steel Screws | 10mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel screws, featuring a 10mm diameter and high load capacity, is perfect for securing frames in concrete and masonry. Designed for over 100 building materials, this pack of 50 ensures reliable performance in construction applications, with immediate load-bearing capacity and fire resistance rating F30.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screws | 10mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912810402
Alternatively Known As: Plastic frame anchor, SHARK UR anchor, Zinc plated countersunk screw fixing, Frame fixing anchor, W-UR 10 anchor
Technical Specifications
- Anchor diameter: 10 mm
- Anchor length: 100 mm
- Max. attachment height: 50 mm
- Nominal drill-bit diameter: 10 mm
- Through-hole diameter: 10.5 mm
- Fire resistance rating: F30
- Screw diameter: 7 mm
- Screw length: 105 mm
- Material of screw: Steel
- Internal drive: AW40
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. height of fixture: 30-50 mm
- Approval: ETA-08/0190
- Type description: W-UR 10, countersunk head screw
- Dimensions (H x L x W): 100mm x 105mm x 10mm
- Weight: 1.3 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for more than 100 proven and modern building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct embedment depth and secure fixing according to ETA approval.
Applications
- Fixing frames in concrete and masonry
- Suitable for over 100 building materials
- Construction and building applications requiring high load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty terms as per Wurth standard product warranty policies.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building frame fixing applications.
