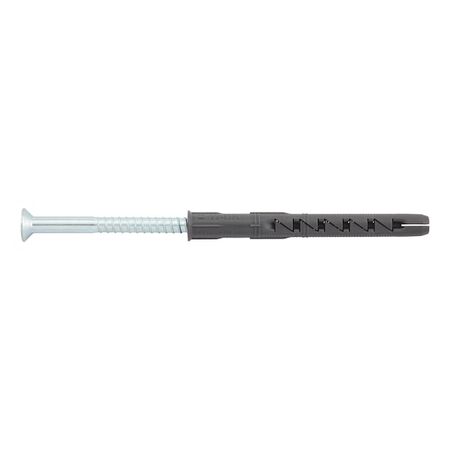

Plastic Frame Fixing with Zinc Plated Steel Screws | 8mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel screws offers an 8mm diameter and high load capacity, making it ideal for securing frames in concrete and masonry. Designed for professional installation, this fixing anchor ensures reliable performance across over 100 building materials, providing immediate load-bearing capacity and fire resistance rating F30.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screws | 8mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912808402
Alternatively Known As: Plastic frame fixing anchor, SHARK UR anchor, zinc plated countersunk screw fixing, frame fixing screw anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 60 mm
- Max. attachment height: 10 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Fire resistance rating: F30
- Screw diameter: 6 mm
- Screw length: 65 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 60 mm
- Approval: ETA-08/0190
- Type description: W-UR 8, countersunk head screw
- Dimensions (H x L x W): 60mm x 65mm x 8mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested for over 100 building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment depth and secure fixing according to building codes.
Applications
- Suitable for fixing frames in concrete, masonry, and over 100 proven building materials
- Ideal for construction and building projects requiring reliable load-bearing anchors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available for immediate purchase, ideal for construction and building frame fixing applications.
