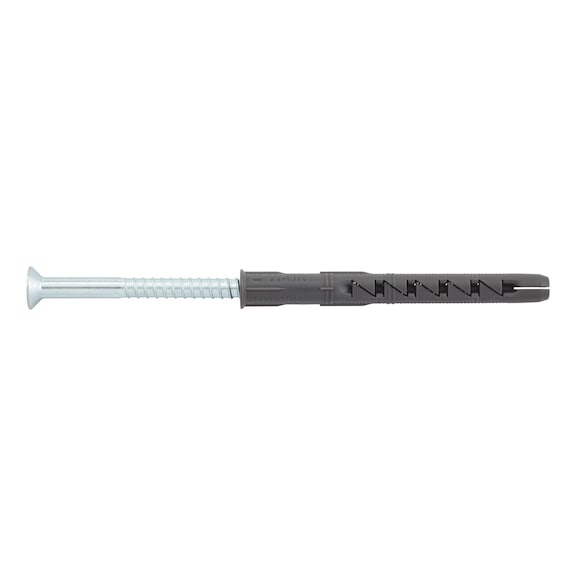

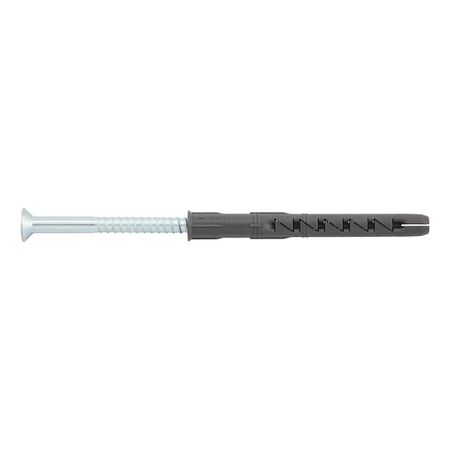

Plastic Frame Fixing with Zinc Plated Steel Screws | 8mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Plastic frame fixing with zinc plated steel screws, featuring an 8mm diameter and high load capacity, is perfect for securely anchoring frames in concrete and masonry. Designed for professional installation, this versatile fixing solution is tested and approved for over 100 building materials, ensuring reliable performance in construction and building applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Frame Fixing with Zinc Plated Steel Screws | 8mm Diameter | High Load Capacity | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5912808403
Alternatively Known As: Plastic frame fixing anchor, SHARK UR anchor, Zinc plated countersunk screw fixing, Frame fixing screw anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Max. attachment height: 30 mm
- Nominal drill-bit diameter: 8 mm
- Through-hole diameter: 8.5 mm
- Fire resistance rating: F30
- Screw diameter: 6 mm
- Screw length: 85 mm
- Material of screw: Steel
- Internal drive: AW30
- Surface of screw: Zinc plated
- Head type: Countersunk head
- Drill hole depth: 80 mm
- Min./max. height of fixture: 10-30 mm
- Approval: ETA-08/0190
- Type description: W-UR 8, countersunk head screw
- Dimensions (H x L x W): 80mm x 85mm x 8mm
- Weight: 0.5 kg
Key Features
- Universal frame fixing with special anchor geometry
- Immediate load-bearing capacity with ETA assessment
- Tested and approved for over 100 building materials
- High load capacity due to expansion in four directions
- Friction locking between anchor sleeve and base material
- Anchor sleeve made of high-quality polyamide
- Strong anti-rotation lock
- Pre-assembled anchor sleeve and special screw for efficient installation
- Hammer-in stop prevents premature expansion during installation
- Two embedment depths for defined building materials
- Fire resistance rating F30
Professional Installation Requirements
- Professional installation by a qualified tradesperson is recommended to ensure correct embedment depth and secure fixing.
Applications
- Suitable for fixing frames in concrete and masonry
- Versatile use with over 100 proven building materials
- Ideal for construction and building applications requiring secure anchorage
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Efficient installation reduces waste and energy consumption on site
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per standard terms and conditions.
Available Now
The Wurth SHARK UR Plastic Frame Fixing with Zinc Plated Steel Countersunk Head Screw 50 PCS is available now for immediate purchase. Ideal for construction and building frame fixing applications.
