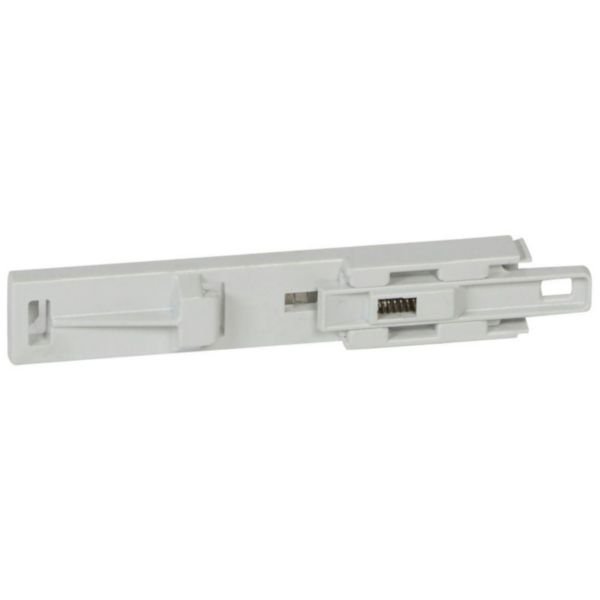

Plate for Fixing DRX 125 on Rail | Compatible with 1P MCCBs | Includes Fixing Screws | by Legrand
The Plate for Fixing DRX 125 on Rail is designed for secure mounting of 1-pole (1P) thermal magnetic MCCBs on DIN rails. This essential component includes fixing screws and insulating shields, ensuring stable installation in switchboards and power cabinets. Ideal for residential, commercial, and industrial low-voltage electrical systems, it conforms to IEC 60947-2 and NEMA standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plate for Fixing DRX 125 on Rail | Compatible with 1P MCCBs | Includes Fixing Screws | by Legrand
Brand: Legrand
SKU: 027189
Alternatively Known As: DRX 125 Mounting Plate, DIN Rail Fixing Plate for DRX 125, MCCB Fixing Plate 1P
Technical Specifications
- Compatible with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- For 1-pole (1P) circuit breakers
- Mounting on DIN rail
- Includes fixing screws and insulating shields
- Conforms to IEC 60947-2 and NEMA standards
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed specifically for fixing DRX 125 MCCBs on DIN rails
- Compatible with 1-pole (1P) MCCBs
- Includes fixing screws and insulating shields
- Ensures secure and stable mounting of circuit breakers
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Mounting and fixing DRX 125 thermal magnetic MCCBs on DIN rails in switchboards and power cabinets
- Suitable for electrical control, isolation, and protection systems in residential, commercial, and industrial low-voltage electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Facilitates secure installation of energy-efficient MCCBs, contributing to electrical safety and system reliability
Warranty Information
Legrand standard warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Plate for Fixing DRX 125 on Rail - 1P is available for immediate purchase, ideal for use in electrical switchboards and power cabinets for secure MCCB installation.
