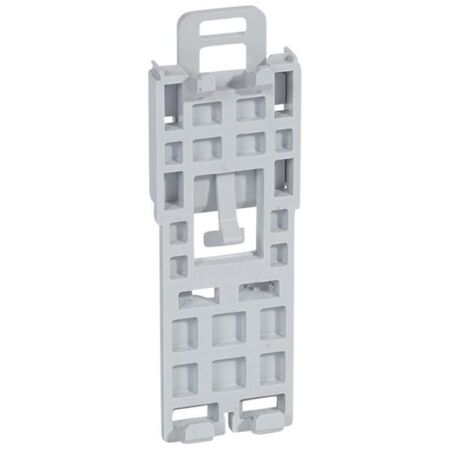

Plate for Fixing DRX 125 on Rail | Compatible with 2P MCCBs | Includes Fixing Screws | by Legrand
The Plate for Fixing DRX 125 on Rail is designed for secure mounting of 2-pole (2P) thermal magnetic MCCBs on DIN rails. This essential accessory includes fixing screws and insulating shields, ensuring a stable installation in switchboards and power cabinets. Ideal for residential, commercial, and industrial low-voltage electrical systems, it conforms to IEC 60947-2 and NEMA standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plate for Fixing DRX 125 on Rail | Compatible with 2P MCCBs | Includes Fixing Screws | by Legrand
Brand: Legrand
SKU: 027190
Alternatively Known As: DRX 125 Mounting Plate, DIN Rail Fixing Plate for DRX 125, MCCB Fixing Plate 2P
Technical Specifications
- Compatible with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- For 2-pole (2P) circuit breakers
- Mounting on DIN rail
- Includes fixing screws and insulating shields
- Conforms to IEC 60947-2 and NEMA standards
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed specifically for fixing DRX 125 MCCBs on DIN rails
- Compatible with 2-pole (2P) circuit breakers
- Includes fixing screws and insulating shields
- Ensures secure and stable mounting of MCCBs
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Mounting and fixing DRX 125 thermal magnetic MCCBs on DIN rails in switchboards and power cabinets
- Suitable for electrical control, isolation, and protection systems in residential, commercial, and industrial low-voltage electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Facilitates secure and durable installation reducing maintenance and replacement waste
- Supports use of energy-efficient MCCBs contributing to overall electrical safety and efficiency
Warranty Information
Legrand standard warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Plate for Fixing DRX 125 on Rail - 2P is available for immediate purchase, ideal for use in electrical switchboards and power cabinets for secure MCCB installation.
