Platinum RT 1 1kVA Online Double Conversion 2U UPS Chase Power

BRAND: Chase Power
SKU: CP2351
$1,286.40 List price: $1,929.60
+ −
30 Days Return Electricians Unlock Trade Access

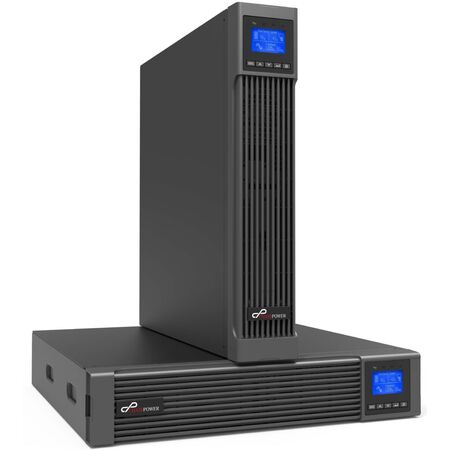

Chase Power Platinum RT 1 online double conversion UPS 1kVA/1000W rack/tower 2U. True online protection for IT racks.

Alternatively Known As: Platinum RT 1 UPS, 1000VA Online UPS, 2U Rack/Tower UPS

Technical Specifications
  • Power Rating: 1000VA / 1000W
  • Topology: Online double conversion
  • Input Voltage: 200/208/220/230/240VAC
  • Input Voltage Range: 160–300VAC at 100% load
  • Input Frequency: 50/60Hz
  • Input Connection: IEC C14
  • Output Performance Classification: VFI-SS-313
  • Output Voltage Accuracy: ±1%
  • Output Distortion: Less than 1% with linear load; less than 5% with non-linear load
  • Transfer Time: 0ms on mains-to-battery transfer; 4ms line-to-bypass
  • Power Factor: Greater than 0.99 input; unity output power factor
  • Efficiency: 89% in double-conversion mode; 96% in ECO mode
  • Battery: 3 × 12V/7Ah internal battery modules
  • Battery Replacement: Hot-swappable

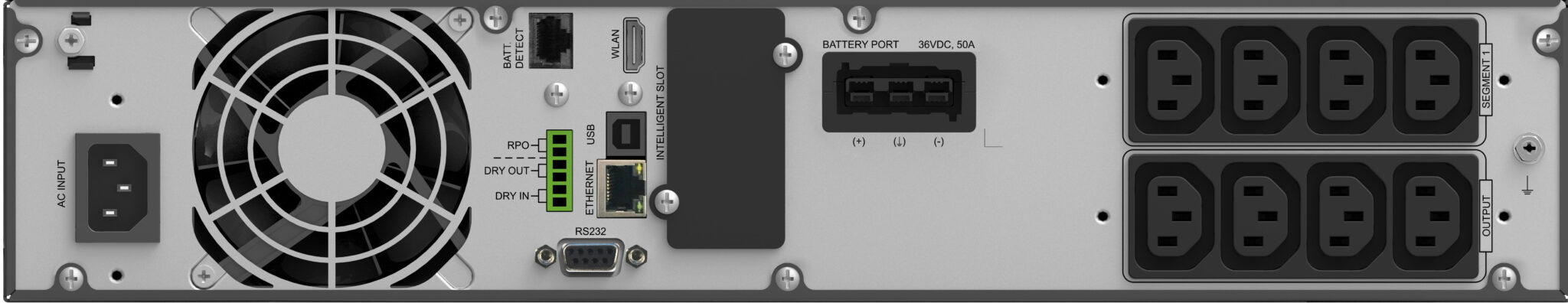

  • Output Connections: 4 × IEC C13 main outlets and 4 × IEC C13 programmable outlets
  • Communications: USB HID, RS-232 and RJ45 IoT port
  • Optional Communications: SNMP, Modbus, AS400, environmental monitoring and WLAN modules
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0–95%
  • Acoustic Noise: Less than 45dB at typical load with fully charged battery
  • Ingress Protection: IP20
  • Rack Height: 2U
  • Declared Certification: CE and IEC/EN 62040
  • Dimensions (H x L x W): 86.5mm x 438mm x 445mm
  • Weight: 16 kg
Key Features
  • True online double-conversion protection for servers, networking and other critical IT equipment
  • 1000VA/1000W unity power factor output capacity

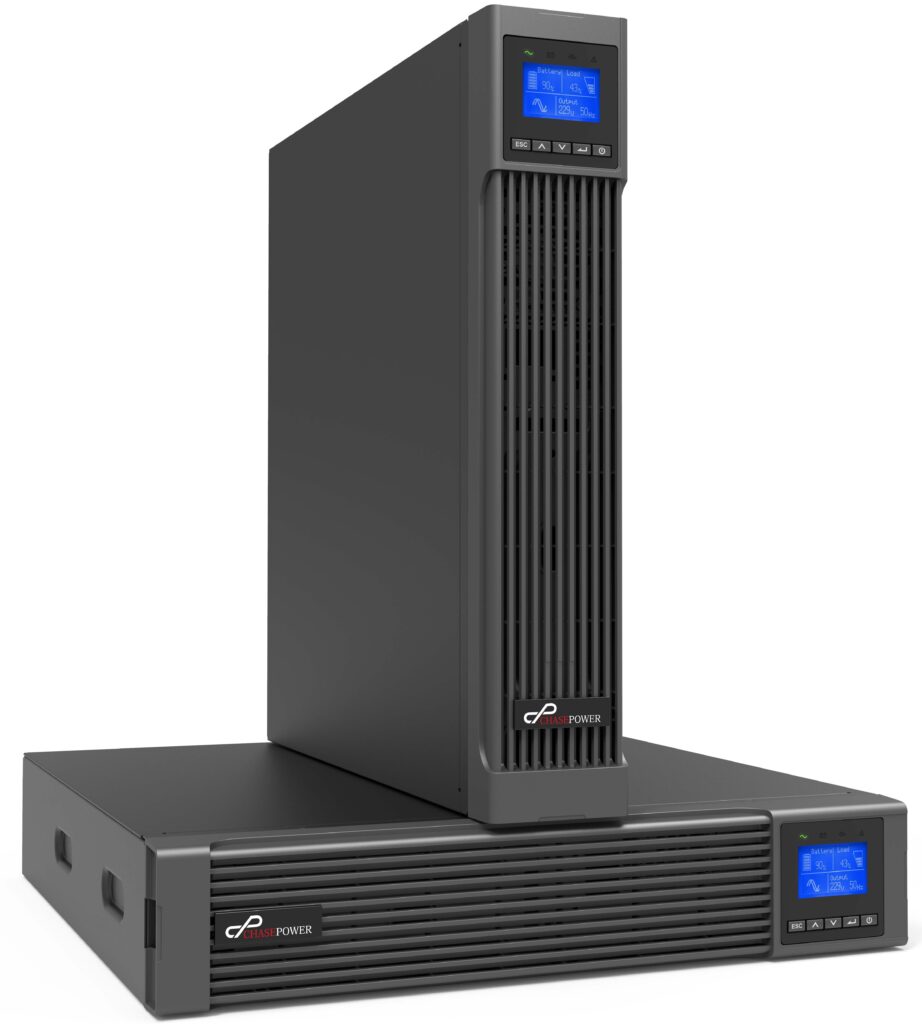

  • Rackmount or tower-configurable 2U design with rotatable LCD display
  • Wide 160–300VAC input range at full load
  • Programmable outlet group for controlled load shutdown
  • Zero-millisecond mains-to-battery transfer
  • USB HID monitoring without additional software installation
  • WinPower software and WinPower View mobile application support
  • Built-in over-voltage, fan-lock, over-temperature and overload detection
  • External battery banks available for extended runtime
Professional Installation Requirements
  • Connection should be completed by a suitably qualified electrical or UPS technician. Rack installation, earthing, bypass arrangements and any permanent electrical work must comply with applicable Australian electrical installation requirements, including AS/NZS 3000.
Applications
  • Servers and server racks
  • Network switches, routers and telecommunications equipment
  • Data centre and IT infrastructure
  • Industrial control and automation equipment
  • Security and access-control systems
  • Medical and diagnostic equipment
  • Radio and telephony systems
  • Automatic gates and other critical electronic loads
Standards & Compliance
  • AS 62040.1:2019 — applicable Australian UPS safety requirements
  • AS 62040.2 — applicable UPS electromagnetic compatibility requirements
  • AS/NZS 3000:2018 — applicable to electrical installation, connection and earthing
Environmental Benefits
  • ECO mode efficiency of up to 96% can reduce operating losses during suitable load conditions
  • Unity power factor provides 1000W from a 1000VA rating, helping reduce unnecessary UPS oversizing
  • Improved battery-management algorithms are intended to extend battery service life and reduce replacement waste
  • Programmable outlet control can reduce unnecessary energy consumption from non-critical connected loads
Warranty Information

Chase Power states that its UPS warranty is equal to or better than comparable market offerings; the specific warranty duration and conditions should be confirmed with Chase Power or the authorised distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
