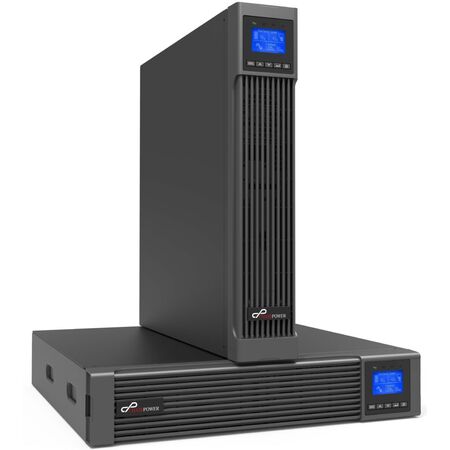

Platinum RT 2 2kVA Online Double Conversion 2U UPS Chase Power

BRAND: Chase Power
SKU: CP2352
$2,329.90 List price: $3,494.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chase Power Platinum RT 2 online double conversion UPS 2kVA/1800W rack/tower 2U. True online protection for IT racks.

Alternatively Known As: Platinum RT 2 UPS, 2kVA Rack-Mount UPS, 2U Online UPS, True Online UPS

Technical Specifications
  • Power Rating: 2000VA / 2000W
  • UPS Topology: Online double conversion
  • Efficiency: 93% in double conversion mode; 97% in ECO mode
  • Input Voltage: 160–300VAC at 100% load
  • Rated Input Voltage: 200/208/220/230/240VAC
  • Frequency: 50/60Hz with 40–70Hz input range
  • Power Factor: Greater than 0.99
  • Output Waveform: Pure sinewave
  • Output Voltage: 200/208/220/230/240VAC
  • Transfer Time: 0ms from mains to battery
  • Battery: 6 x 12V 7Ah sealed lead-acid batteries
  • Battery Voltage: 72VDC
  • Recharge Time: Approximately 3 hours to 90% capacity

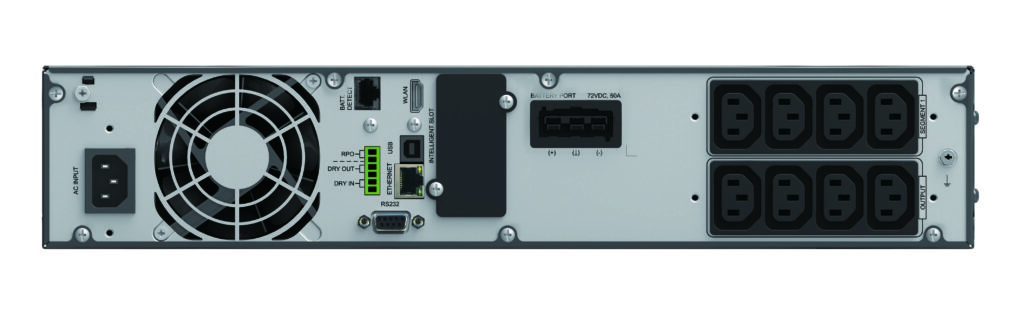

  • Output Connections: IEC C19 and IEC C13 outlets with programmable load segment
  • Input Connection: IEC C14; 10A supply required
  • Communications: USB HID, RS-232 and RJ45 Ethernet port for IoT monitoring
  • Optional Connectivity: SNMP, Modbus, AS400, environmental monitoring and WLAN modules
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0–95% non-condensing
  • Operating Altitude: 0–3000m with load derating above 1000m
  • Noise Level: Less than 45dB at typical load
  • Ingress Protection: IP20
  • Manufacturer Certification Reference: CE and IEC/EN 62040
  • Dimensions (H x L x W): 86.5mm x 438mm x 600mm
  • Weight: 29 kg
Key Features
  • True online double conversion protection for servers, networking equipment and critical IT infrastructure

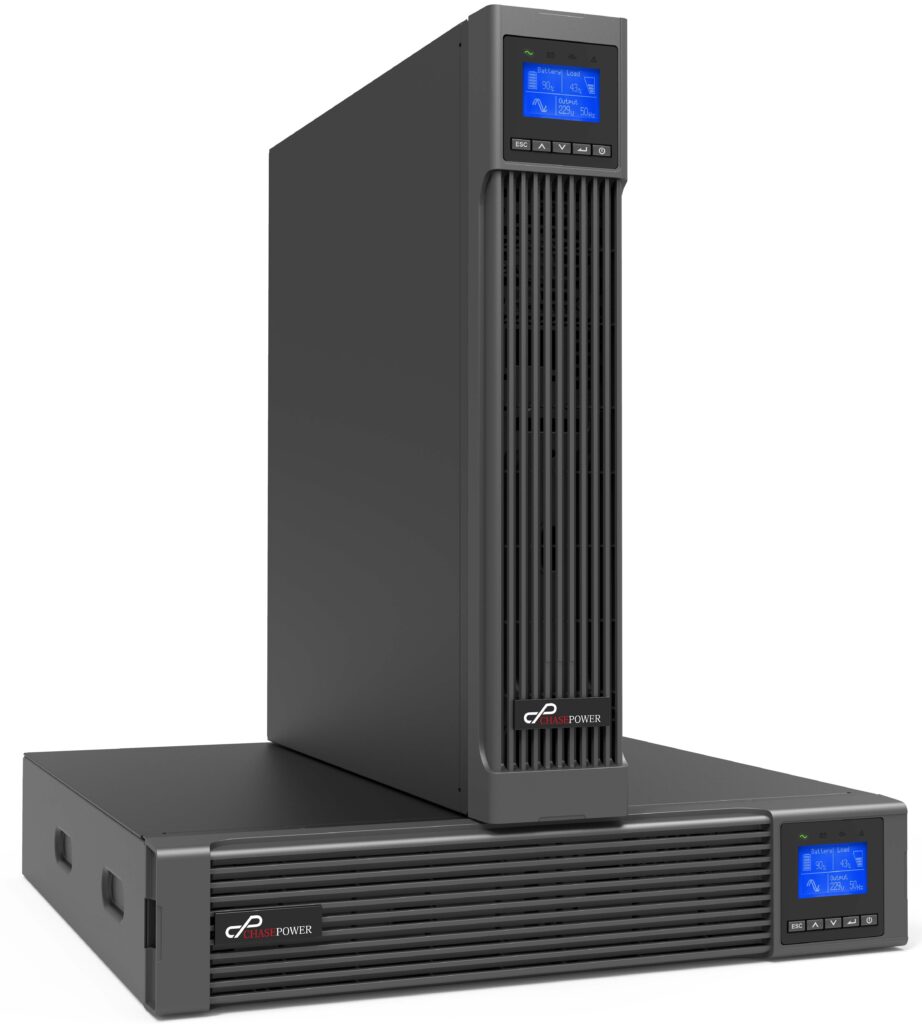

  • 2U rack-mount or tower-configurable design
  • Unity power factor provides 2000W of usable output power from a 2kVA UPS
  • Wide 160–300VAC input range at full load
  • Pure sinewave output suitable for sensitive electronic equipment
  • Zero transfer time between mains and battery operation
  • LCD display for input, output, load, battery and operating-status information
  • USB HID and RS-232 connectivity for local monitoring and shutdown management
  • Optional network, Modbus, AS400, WLAN and environmental monitoring interfaces
  • Programmable outlet groups for load management
  • External battery banks available for extended runtime
  • Built-in over-voltage, overload, over-temperature and fan-lock protection
Professional Installation Requirements
  • Installation and commissioning should be performed by a suitably qualified electrical professional. Connect in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements, including AS/NZS 3000 where relevant. Battery servicing and replacement should be carried out by trained personnel.
Applications
  • Server racks and data-centre equipment
  • IT and telecommunications infrastructure
  • Networking and communications equipment
  • Industrial control and automation equipment
  • Medical and laboratory equipment
  • Radio and telephony systems
  • Security and access-control systems
  • Automatic gates and other critical electronic loads
Standards & Compliance
  • Relevant Australian UPS safety standard: AS 62040.1:2019
  • Relevant Australian UPS EMC standard: AS 62040.2
  • Electrical installation reference for mains-connected installation: AS/NZS 3000:2018
Environmental Benefits
  • ECO mode efficiency of up to 97% can reduce operating energy consumption when maximum online conditioning is not required
  • High-efficiency double conversion operation can reduce energy losses during continuous operation
  • Replaceable sealed lead-acid batteries can extend the service life of the UPS and reduce whole-unit replacement waste
  • Lead-acid batteries should be recovered and recycled through an appropriate battery recycling programme at end of life
Warranty Information

Chase Power states that its UPS warranty is equal to or superior to comparable brands, but does not publish a specific warranty duration for the Platinum RT 2. Confirm the applicable warranty terms with Chase Power or the authorised distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors, subject to distributor stock and model availability.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
