Platinum RT 3 3kVA Online Double Conversion 2U UPS Chase Power

BRAND: Chase Power
SKU: CP2353
$2,879.90 List price: $4,319.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Chase Power Platinum RT 3 online double conversion UPS 3kVA/3000W rack/tower 2U. True online protection for data racks.

Alternatively Known As: Platinum RT 3 UPS, CP2353, 3kVA Rack/Tower UPS, Online Double Conversion UPS

Technical Specifications
  • Power Rating: 3kVA/3000W
  • UPS Topology: Online double conversion
  • Input Voltage: 200/208/220/230/240VAC
  • Input Voltage Range: 160–300VAC at 100% load
  • Input Frequency: 50/60Hz
  • Input Power Factor: Greater than 0.99
  • Total Harmonic Distortion: Less than 5%
  • Output Performance Classification: VFI-SS-313
  • Output Voltage Accuracy: ±1%
  • Transfer Time: 0ms in online mode
  • Input Connection: IEC C20

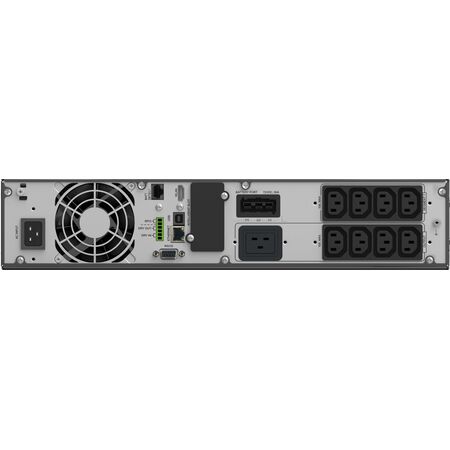

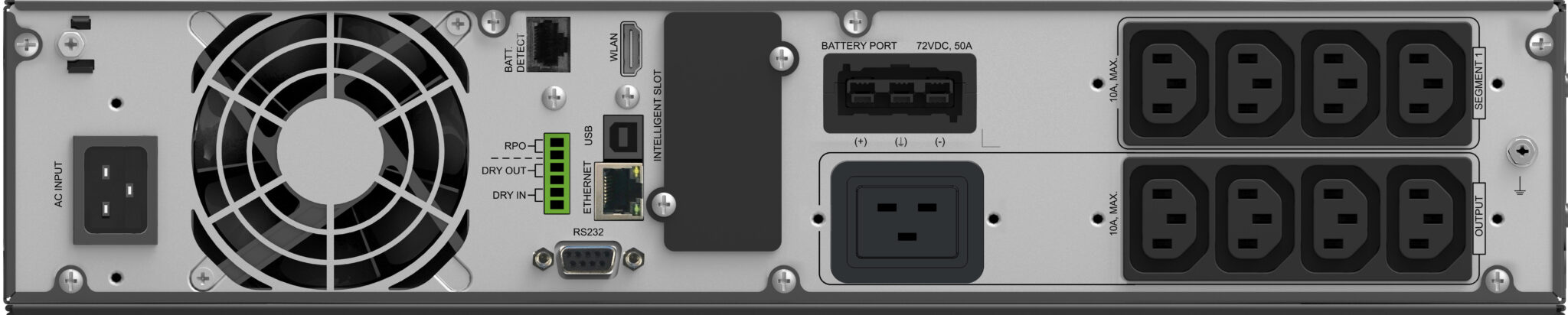

  • Output Connection: 1 x IEC C19 and 8 x IEC C13 outlets
  • Battery Configuration: 6 x 12V/9Ah sealed lead-acid batteries
  • Battery Replacement: Hot-swappable
  • Communications: USB HID and RS-232
  • Optional Connectivity: SNMP, Modbus, AS400, environmental monitoring and WLAN modules
  • Operating Temperature: 0–40°C
  • Relative Humidity: 0–95% non-condensing
  • Ingress Protection: IP20
  • Acoustic Noise: Less than 45dB at typical load with fully charged battery
  • Input Supply Requirement: 15A power point
  • Dimensions (H x L x W): 86.5mm x 600mm x 438mm
  • Weight: 30 kg
Key Features
  • True online double conversion protection for continuous voltage and frequency regulation
  • Unity power factor provides 3000W of usable output at a 3kVA rating

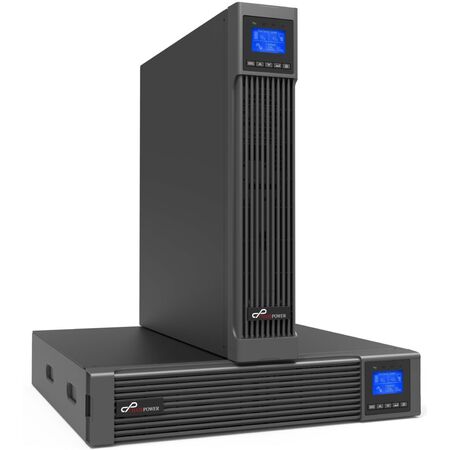

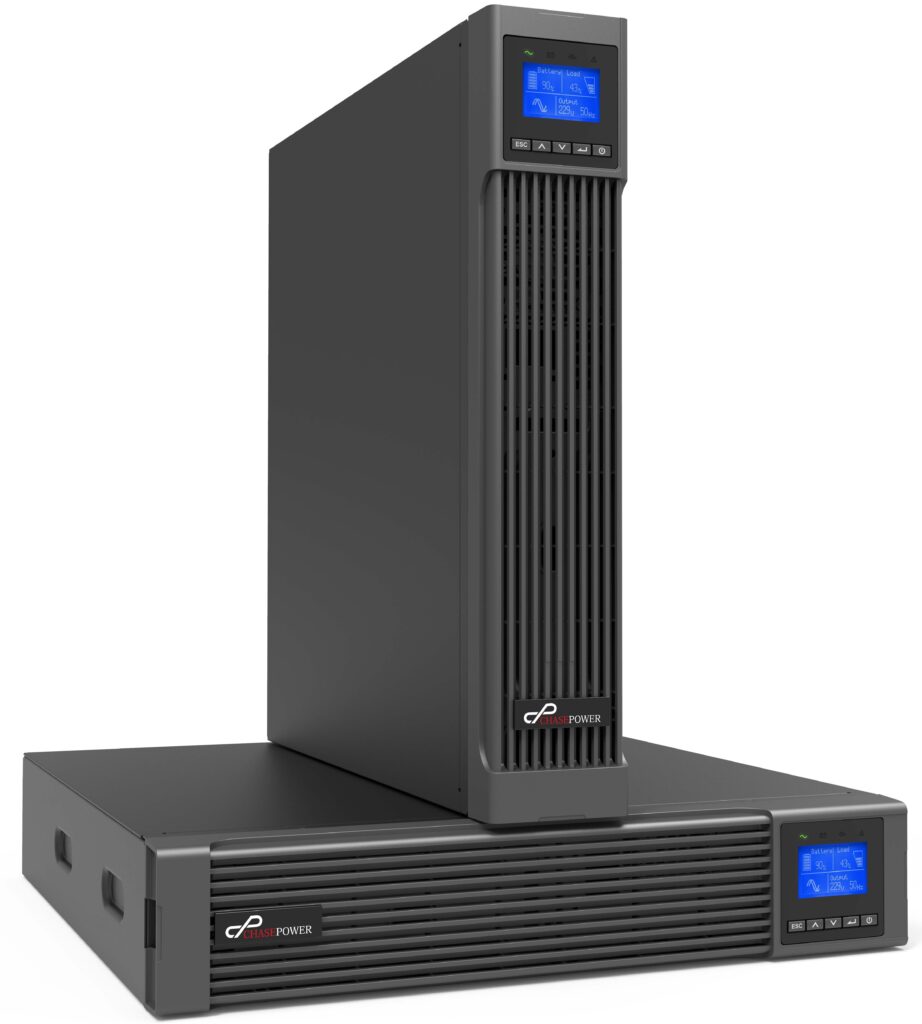

  • Compact 2U rack-mount or tower-configurable design
  • Wide 160–300VAC input range suited to unstable utility supplies, generators, SWER lines and solar power systems
  • Zero transfer time in online operating mode
  • Programmable outlet groups for controlled load management
  • LCD display with manually rotatable display orientation
  • Built-in over-voltage cut-off, fan-lock, over-temperature and overload detection
  • USB HID monitoring without requiring software installation
  • WinPower software and WinPower View mobile application support
  • External battery banks available for extended runtime
  • Supplied with a 15A input cable, USB cable, rack ears and tower stands
Professional Installation Requirements
  • Installation and commissioning should be performed by a suitably qualified electrical contractor. Mains connection, earthing, rack installation and any hard-wired bypass or external battery-bank work must comply with applicable Australian electrical installation requirements, including AS/NZS 3000.
Applications
  • Server racks and data centres
  • IT and networking infrastructure
  • Telecommunications and radio systems
  • Industrial control equipment
  • Medical and laboratory equipment
  • Automatic gates and access-control systems
  • Sites supplied by generators, solar systems or SWER lines
  • Business-critical equipment requiring uninterrupted power protection
Standards & Compliance
  • AS IEC 62040.1 – Uninterruptible power systems: general and safety requirements; verify product certification for the supplied Australian configuration
  • AS IEC 62040.2 – Uninterruptible power systems: electromagnetic compatibility requirements
  • AS IEC 62040.3 – Uninterruptible power systems: method of specifying performance and test requirements
  • AS/NZS 3000 – Electrical installations, applicable to installation and connection work
Environmental Benefits
  • High-efficiency ECO operating mode can reduce energy consumption during suitable operating conditions
  • Wide input voltage range can reduce unnecessary battery cycling and extend battery service life
  • Hot-swappable batteries support maintenance and replacement without replacing the complete UPS
  • External battery-bank compatibility can extend the usable service life of the UPS installation
  • Sealed lead-acid batteries and electronic components should be recycled through an approved e-waste or battery-recycling programme
Warranty Information

Chase Power states that its UPS warranty is intended to match or exceed comparable market offerings, but a fixed warranty term for the Platinum RT 3 was not published. Confirm the applicable warranty period and battery coverage with Chase Power or the authorised Australian distributor before purchase.

Available Now

Available through Chase Power and authorised Australian distributors, subject to distributor stock and current model availability.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
