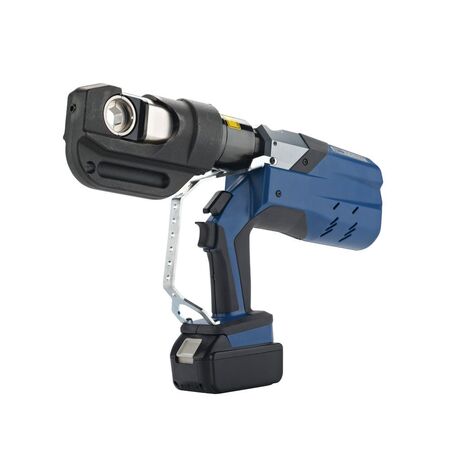

Platinum Series Battery Crimper 13T | 13 Ton Output Force | 42mm Jaw Opening | 18V Lithium-Ion | @Each of 1 | by Cabac
The Platinum Series Battery Crimper 13T is designed for professional electrical installations, featuring a powerful 13-ton output force and a 42mm jaw opening. With its rapid advance two-speed pump and visual crimp indicators, this cordless hydraulic crimper ensures precision and safety for crimping copper and aluminum connectors. Ideal for electricians, it comes with rechargeable 18V batteries and a heavy-duty carry case for convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Output Force: 13 Tonnes (14.6 Short Ton)
- Jaw Opening: 42mm (1.65 inches)
- Operating Voltage: 18 V-DC
- Battery: 18V x 3.0Ah Li-ion
- Recharge Time: 1 hour
- Tool Weight: 7.2 kg (15.8 lbs) with battery
- Length: 425 mm (16.45 inches)
- Width: 73 mm (2.87 inches)
- Height: 290 mm (11.4 inches)
- Variable speed trigger with mechanical release
- Visual and audible crimp indicators
- Braked motor with quick stop motion
- Rotatable 355° 'C' head opening
- Dimensions (H x L x W): 290mm x 425mm x 73mm
- Weight: 7.2 kg
Key Features
- Industry exclusive automatic two speed pump design for rapid advance and high force second stage crimping
- Visual and audible crimp indicators ensure correct crimp every time
- No retract pinch points for ultimate safety
- Braked motor with quick stop motion for user safety
- Large 42mm 'C' head opening rotatable 355°
- Ergonomically designed one-hand operation with soft cover for operator comfort
- High performance quick recharge 18V x 3.0 Ah Li-ion batteries
- Variable speed trigger for full piston control and mechanical release trigger to save battery life
- Supplied with 220V charger, 2 x rechargeable batteries, and heavy duty steel carry case
Professional Installation Requirements
- Professional use recommended; operators should be trained in hydraulic tool safety and electrical connector crimping techniques.
Applications
- Electrical installation and maintenance for crimping electrical connectors
- Suitable for crimping copper connectors up to 400mm² and aluminum connectors up to 300mm²
- Ideal for professional electricians and industrial use
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Battery powered cordless operation reduces reliance on fossil fuels and lowers emissions compared to petrol-powered tools
- Rechargeable lithium-ion batteries promote reuse and reduce waste
- Efficient crimping reduces material waste and improves installation quality
Warranty Information
Warranty details available from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Platinum Series Battery Powered Hydraulic Crimper 13T is available for immediate purchase, ideal for professional electrical and industrial applications.
