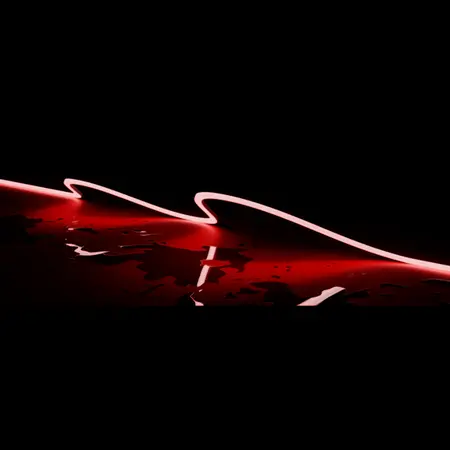

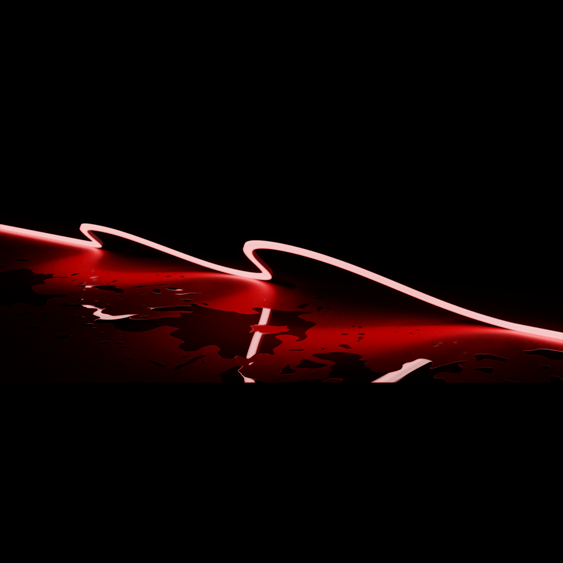

Pleo LED Neon Flex 14.4W/m 24V IP67 RGB Per Metre Domus
Domus Pleo LED neon flex, 14.4W/m, 24V DC, IP67, CRI90, RGB, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: RGB LED Neon Flex, Flexible Neon LED Strip, LED Neon Rope Light, Top-View Neon Flex
- Power Consumption: 14.4W per metre
- Input Voltage: 24V DC
- Colour: RGB
- LED Type: SMD
- LED Density: 140 LEDs per metre
- Ingress Protection: IP67
- Colour Rendering: CRI ≥90 range specification
- Cutting Increment: 50mm
- Dimming: Yes, with compatible controller or driver
- Operating Temperature: -15°C to 85°C
- Maximum Continuous Length: 20m with one-end feed; 40m with two-end feed
- Enclosure Material: Flexible polyurethane
- Power Requirement: 24V DC constant-voltage LED driver and compatible RGB controller
- Dimensions (H x L x W): 14mm x 1000mm x 14mm
- Weight: 0.3 kg
- Smooth, continuous neon-style illumination
- Top-view light emission for horizontal architectural applications
- RGB colour-changing output
- IP67 weather-resistant construction for suitable indoor and outdoor installations
- Flexible polyurethane enclosure for curved and linear applications
- Supplied with mounting clips
- Low-voltage 24V DC operation
- Can be cut in 50mm increments
- Suitable for dimming and RGB colour control with compatible equipment
- Installation and connection to the 24V DC driver and RGB controller should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Use only a compatible constant-voltage driver, controller and correctly sealed terminations to maintain the IP67 rating.
- Architectural feature lighting
- Ceiling and floor coves
- Wall and window outlining
- Signage and display lighting
- Facade and building-edge illumination
- Retail, hospitality and commercial interiors
- Outdoor feature lighting in appropriately protected installations
- Residential decorative lighting
- AS/NZS 3000: Wiring Rules — applicable to installation of the 24V DC lighting system
- AS/NZS 60598.1: Luminaires — general requirements and tests, relevant to the complete assembled lighting installation
- LED technology can reduce energy consumption compared with traditional neon lighting for comparable decorative applications
- Long operating life and low maintenance requirements can reduce replacement frequency and waste
- Durable polyurethane encapsulation and IP67 protection can extend service life in suitable environments
- 24V DC operation supports use with efficient low-voltage LED drivers and control systems
Domus Lighting warranty: 3-year replacement warranty for residential LED strips and 12-month replacement warranty for commercial applications, subject to purchase through an authorised distributor, installation by a licensed electrician and compliance with installation requirements. Australian Consumer Law rights apply in addition.
Available through Domus Lighting and authorised Australian electrical wholesalers, lighting retailers and distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
