Pleo LED Neon Flex Side View 14.4W/m 24V IP67 RGB 10m Roll Domus

BRAND: Domus Lighting
SKU: 21410
$747.10 List price: $996.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

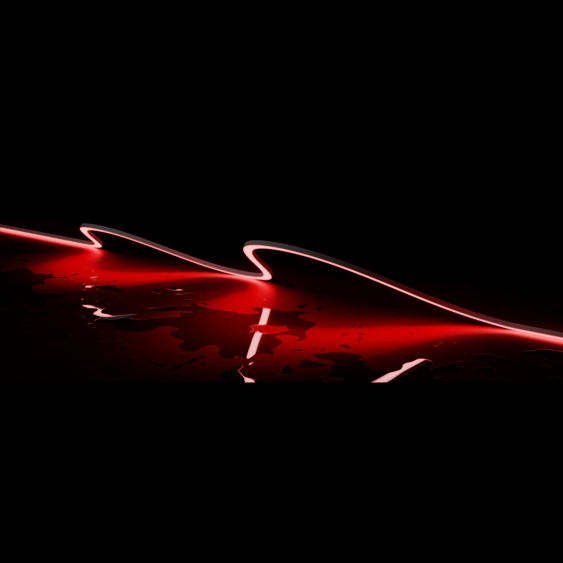

Domus Pleo LED neon flex, side view, 14.4W/m, 24V DC, IP67, CRI90, RGB, 10m roll. Requires 24V DC LED driver.

Alternatively Known As: RGB LED Neon Flex, Side-View Neon LED Strip, Flexible RGB LED Striplight, PLEO-14.4-S-RGB

Technical Specifications
  • Light Colour: RGB
  • Wattage: 14.4W/m
  • Total Roll Load: Approximately 144W for 10m
  • Input Voltage: 24V DC
  • Light Source: 2835 SMD LED, San'an
  • LED Density: 140 LEDs/m
  • Lumen Output: Red 111lm/m, Green 348lm/m, Blue 70lm/m
  • Beam Angle: 115°
  • Wiring: Parallel
  • IP Rating: IP67 when correctly terminated and sealed
  • Cutting Increment: 50mm
  • Dimming: Yes, via a compatible RGB controller
  • Operating Temperature: -15°C to 85°C
  • Required Driver: 24V DC constant-voltage LED driver
  • Lead Length: 150mm
  • Mounting: Supplied mounting clips
  • Product Dimensions: Approximately 14mm wide x 7.5mm high
  • Dimensions (H x L x W): 7.5mm x 10000mm x 14mm
  • Weight: 2.5 kg
Key Features
  • Side-view illumination for vertical architectural and signage applications
  • Flexible polyurethane housing for curved and linear installations
  • Continuous neon-style illumination with smooth, dot-free appearance
  • RGB colour output compatible with programmable lighting controllers
  • IP67 weather-resistant construction when cuts, ends and joints are properly sealed
  • 50mm cutting increments for installation flexibility
  • High-density 140 LEDs per metre
  • Suitable for indoor and outdoor residential or commercial applications
  • Requires a compatible 24V DC constant-voltage driver and RGB controller
Professional Installation Requirements
  • Installation should be performed by a licensed electrician or suitably qualified lighting professional. Use a correctly sized 24V DC constant-voltage driver and compatible RGB controller. Cut only at marked 50mm intervals, and seal all field cuts, end caps and joints in accordance with the manufacturer's instructions. Any mains-side driver connection must comply with applicable electrical installation requirements.
Applications
  • Architectural feature lighting
  • Coves, walls and windows
  • Retail, hospitality and commercial interiors
  • Outdoor signage and display installations
  • Building facades and landscape features
  • Decorative residential lighting
  • Backlighting and continuous linear RGB effects
Standards & Compliance
  • AS/NZS 60598.1:2025 – applicable general requirements and tests for luminaires; project-specific product conformity should be verified with the supplier.
  • AS/NZS 3000:2018 – applicable electrical installation and wiring requirements for the associated LED driver and installation.
Environmental Benefits
  • LED technology can reduce energy consumption compared with halogen lighting while providing controllable coloured illumination.
  • 24V DC operation supports efficient low-voltage lighting system design when paired with a suitable high-efficiency driver.
  • Dimming and RGB control can reduce operating energy by allowing light output and usage periods to be tailored to the application.
  • Durable IP67 polyurethane encapsulation can help protect the strip in suitable environments and reduce premature replacement waste.
Warranty Information

Domus Lighting's warranty policy lists LED strips under a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))

Available Now

Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors. The 10m roll configuration should be confirmed against the supplied SKU, as Domus also lists 1m and 20m PLEO-14.4-S-RGB variants. ([domuslighting.com.au](https://www.domuslighting.com.au/product/pleo-14-4-s/?utm_source=openai))

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
