Trade Discount 25%

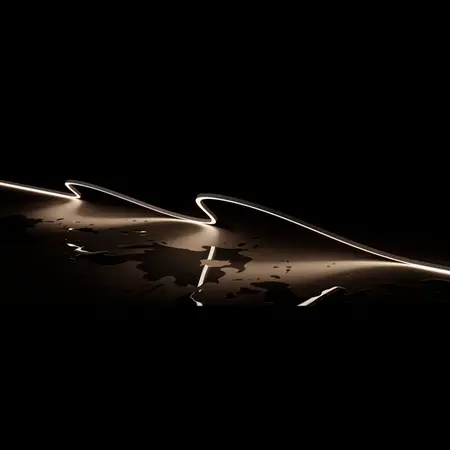

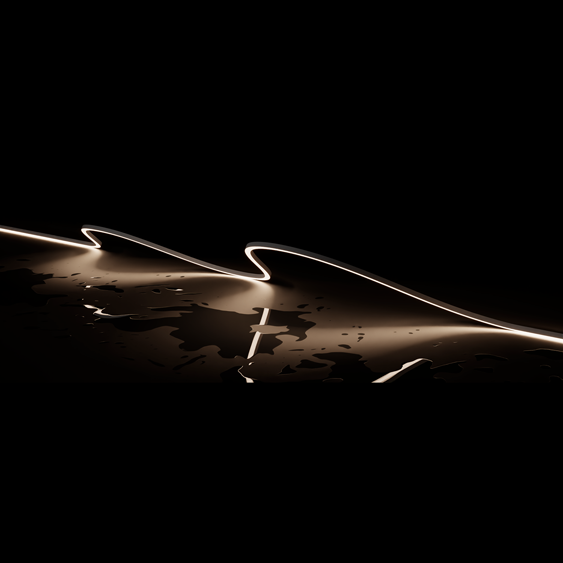

Pleo LED Neon Flex Side View 9.6W/m IP67 4000K Per Metre Domus
Domus Pleo LED neon flex, side view, 9.6W/m, 24V DC, IP67, CRI90, 4000K, sold per metre. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo-9.6-M-S, Side-View Neon Flex, Micro LED Neon Flex, Flexible LED Neon Strip
Technical Specifications
- Product Code: 20372
- Light Direction: Side view
- Power Consumption: 9.6W per metre
- Input Voltage: 24V DC
- Colour Temperature: 4000K
- Colour Rendering Index: CRI90
- Ingress Protection: IP67
- LED Type: SMD
- LED Density: 140 LEDs per metre
- Beam Angle: 115°
- Cutting Increment: 50mm
- Dimming: Yes
- Continuous Run: Up to 5m from one end or 10m from both ends
- Operating Temperature: -15°C to 85°C
- Packaging: Sold per metre; also available in 20m rolls
- Driver Requirement: 24V DC constant-voltage LED driver required
- Dimensions (H x L x W): 15mm x 1000mm x 10mm
- Weight: 0.2 kg
Key Features
- Side-view format designed for vertical illumination
- Flexible polyurethane-enclosed neon design
- Suitable for indoor and outdoor architectural lighting applications
- High CRI90 colour rendering
- IP67-rated construction for dust and moisture protection
- Supplied with mounting clips
- Can be dimmed with a compatible 24V LED control system
- Cuttable at marked 50mm intervals
- Supports single-end runs up to 5m or dual-end runs up to 10m
Professional Installation Requirements
- Installation should be completed by a licensed electrician where connection to a 240V AC LED driver or fixed wiring is required. Use a compatible 24V DC constant-voltage driver, follow the marked cutting points, seal all field cuts and cable joints, and install the complete system in accordance with AS/NZS 3000 and the driver's instructions.
Applications
- Architectural feature lighting
- Vertical wall and façade illumination
- Cove lighting
- Ceiling and floor details
- Window and cabinet outlining
- Signage and display lighting
- Indoor and outdoor decorative lighting
- Retail, hospitality and commercial fit-outs
Standards & Compliance
- AS/NZS 60598.2.23:2021 – relevant standard for extra-low-voltage lighting systems; product-specific compliance declaration should be confirmed with Domus Lighting
- AS/NZS 3000 – applicable to electrical installation, wiring and connection of the 24V lighting system and mains-powered driver
Environmental Benefits
- 24V DC extra-low-voltage operation supports safer, efficient architectural lighting installations
- 9.6W per metre power consumption can reduce energy use compared with higher-wattage decorative lighting alternatives
- Durable polyurethane encapsulation and IP67 protection can help extend service life and reduce replacement waste
- LED technology provides efficient accent and feature lighting with low heat output compared with many conventional light sources
Warranty Information
Domus Lighting warranty statement: LED strips are covered by a 3-year replacement warranty for residential use and a 12-month replacement warranty for commercial use, subject to the manufacturer's terms and correct installation.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; supplied per metre, with a 20m roll option also available.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
