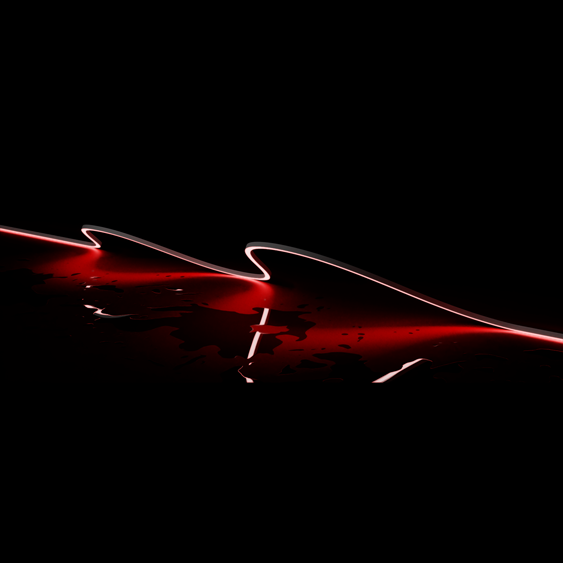

Pleo-Vivid LED Neon Flex Side View 9.6W/m 24V Red Per Metre Domus
Domus Pleo-Vivid LED neon flex, side view, 9.6W/m, 24V DC, CRI90, red, sold per metre. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo-Vivid-S Side View LED Strip, Red LED Neon Flex, 24V LED Neon Strip
Technical Specifications
- Product Type: Side-view LED strip light
- Light Colour: Vivid red
- Input Voltage: 24V DC
- Power Consumption: 9.6W per metre
- LED Type: SMD
- LED Density: 140 LEDs per metre
- Ingress Protection: IP67
- Beam Angle: 115°
- Cutting Increment: 50mm
- Dimming: Yes
- Maximum Continuous Run: 5m single-feed or 10m dual-feed
- Operating Temperature: -15°C to 85°C
- Supply Format: Sold per metre
- Required Accessory: 24V DC constant-voltage LED driver
- Colour Rendering Index: CRI 90
- Dimensions (H x L x W): 11mm x 1000mm x 8mm
- Weight: 0.18 kg
Key Features
- Side-view light emission for signage, outlines and profile installations
- Vivid red fixed-colour output
- IP67 protection for suitable indoor and outdoor applications
- Dimmable with compatible 24V DC control equipment
- 140 SMD LEDs per metre for consistent illumination
- Cuttable in 50mm increments
- Maximum 5m single-ended run or 10m dual-ended run
- Supplied per metre for flexible project quantities
Professional Installation Requirements
- The strip requires a compatible 24V DC constant-voltage LED driver. Driver selection, mains connection and final electrical installation should be completed by a licensed electrician in accordance with manufacturer instructions and applicable wiring rules.
Applications
- Signage and illuminated lettering
- Architectural outlines and edge lighting
- Feature lighting and decorative installations
- Lighting within aluminium or flexible profiles
- Indoor and outdoor accent lighting where IP67 protection is suitable
Standards & Compliance
- AS/NZS 3000: Electrical installations (Wiring Rules) — applicable to installation of the 24V driver and associated electrical wiring
Environmental Benefits
- LED technology provides an energy-efficient alternative to conventional neon signage and higher-power decorative lighting
- Low-voltage 24V DC operation can support efficient, controlled lighting installations when paired with an appropriately sized driver
- IP67 construction and flexible installation format can support extended service life in suitable environments, reducing replacement waste
Warranty Information
Backed by a 3-year warranty against manufacturing defects, subject to Domus Lighting warranty terms, correct installation and use with suitable equipment. Warranty claims require installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
