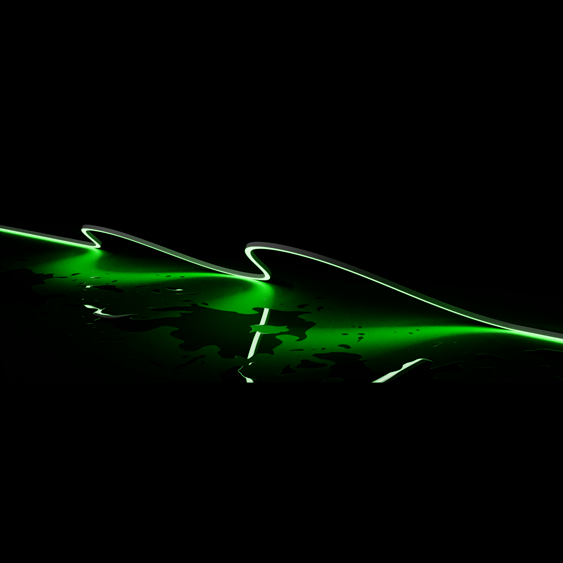

Pleo-Vivid LED Neon Flex Side View 9.6W/m Green Per Metre Domus
Domus Pleo-Vivid LED neon flex, side view, 9.6W/m, 24V DC, CRI90, green, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo-Vivid-S Green LED Strip, Side View LED Neon Flex, Green LED Strip Light, Domus LED Neon Flex
- Product Variant: PLEO-VIVID-S, Item 20070
- Colour: Vivid Green
- Light Source: SMD LED
- LED Density: 140 LEDs/m
- Power Consumption: 9.6W/m
- Input Voltage: 24V DC
- Beam Angle: 115°
- Ingress Protection: IP67
- Cutting Increment: 50mm
- Dimming: Yes
- Maximum Continuous Run: 5m single-feed or 10m dual-feed
- Operating Temperature: -15°C to 85°C
- Driver Requirement: 24V DC constant-voltage LED driver
- Sales Unit: Per metre; supplied from a 20m roll
- Dimensions (H x L x W): 6.5mm x 1000mm x 8mm
- Weight: 0.1 kg
- Side-view light emission for vertical profiles, signage outlines and edge illumination
- Fixed vivid green colour output
- IP67-rated construction for suitable indoor and outdoor applications
- Dimmable with a compatible 24V DC control system
- 50mm cutting increments for precise length adjustment
- Supports runs up to 5m from one end or 10m with dual-end feeding
- 115° beam angle provides focused linear illumination
- Installation and connection to the LED driver should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation requirements. Use a compatible 24V DC constant-voltage driver and suitable IP-rated connections for outdoor installations.
- Architectural feature lighting
- Signage and sign outlines
- Display and retail lighting
- Edge lighting in aluminium profiles
- Cove, wall and ceiling accent lighting
- Outdoor decorative and commercial lighting where IP67 protection is suitable
- AS/NZS 3000:2018 Electrical installations for the selection and installation of the lighting circuit and associated driver
- 24V DC LED technology provides efficient low-voltage operation at 9.6W per metre
- Cut-to-length 50mm sections can reduce excess material and installation waste
- LED construction supports lower energy consumption than many conventional linear lighting technologies
- Long service use can reduce replacement frequency and associated material waste
Domus states a 3-year warranty for this product. Domus warranty eligibility requires purchase through an authorised distributor, installation by a licensed electrician and installation in accordance with the manufacturer's guidelines. The current Domus warranty statement generally specifies 3-year replacement coverage for LED strips in residential applications and 12-month replacement coverage for commercial applications.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
