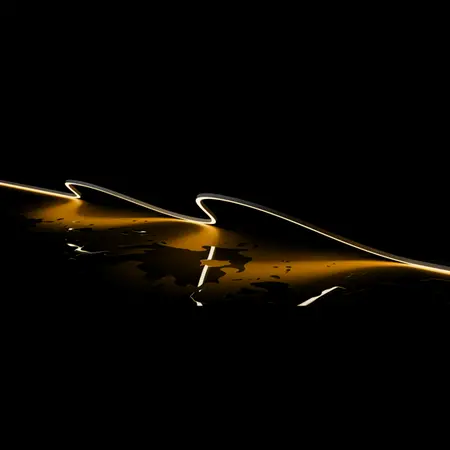

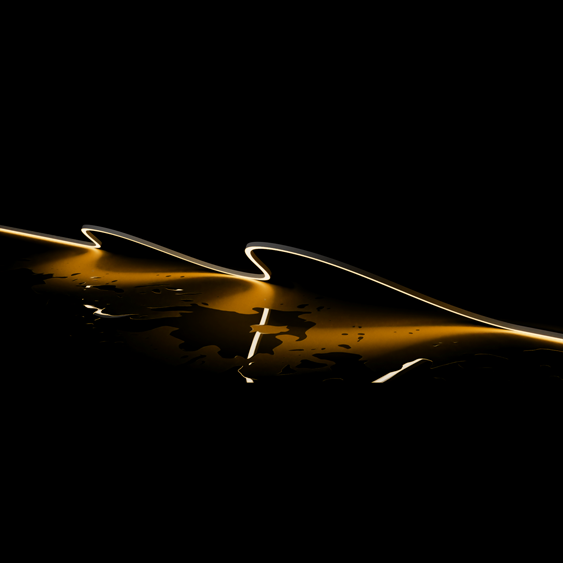

Pleo-Vivid LED Neon Flex Side View 9.6W/m Yellow Per Metre Domus
Domus Pleo-Vivid LED neon flex, side view, 9.6W/m, 24V DC, CRI90, yellow, sold per metre. Requires 24V DC LED driver.
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo Vivid-S Side View LED Strip, Yellow LED Neon Flex, Side-Emitting LED Strip Light
- Light Colour: Vivid Yellow
- Power Consumption: 9.6W per metre
- Input Voltage: 24V DC
- LED Type: SMD
- LED Density: 140 LEDs per metre
- Beam Angle: 115°
- Ingress Protection: IP67
- Dimming: Yes
- Cutting Increment: 50mm
- Maximum Continuous Run: 5m single-feed or 10m dual-feed
- Operating Temperature: -15°C to 85°C
- Driver Requirement: Requires a compatible 24V DC constant-voltage LED driver
- Sales Unit: Sold per metre
- Dimensions (H x L x W): 6.5mm x 1000mm x 11mm
- Weight: 0.12 kg
- Side-view light emission for signage, outlines and profile installations
- Fixed vivid yellow colour output
- IP67 protection for suitable indoor and outdoor applications
- 140 SMD LEDs per metre for consistent illumination
- Dimmable with compatible 24V DC control equipment
- 50mm cut increments for installation flexibility
- Maximum 5m single-feed or 10m dual-feed continuous runs
- 115° beam angle for defined directional lighting
- Installation and connection to the 24V DC LED driver should be performed by a licensed electrician in accordance with manufacturer instructions and applicable Australian electrical installation requirements.
- Architectural feature lighting
- Signage and lettering outlines
- Retail and hospitality displays
- Decorative interior lighting
- Outdoor profiles and protected exterior installations
- Cove, edge and accent lighting
- AS/NZS 3000:2018 for the associated electrical installation, wiring and 24V DC driver connection; product-specific certification should be confirmed with Domus Lighting
- Low-voltage LED technology provides efficient illumination at 9.6W per metre
- Long-life LED construction can reduce replacement frequency and material waste
- IP67 construction supports extended service life in suitable protected outdoor applications
- Requires a separate driver, allowing the power supply to be selected and replaced independently
Domus Lighting warranty: 3-year replacement warranty for residential use and 12-month replacement warranty for commercial use for LED strips, subject to licensed electrician installation, approved distribution, correct installation and the applicable warranty conditions.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
