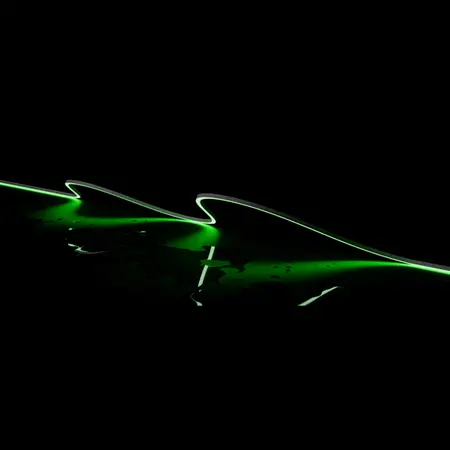

Pleo-Vivid Micro LED Neon Flex 9.6W/m 24V Green Per Metre Domus
Domus Pleo-Vivid micro LED neon flex, 9.6W/m, 24V DC, CRI90, green, sold per metre. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pleo Vivid Green Neon Flex, Green LED Neon Strip, 24V Static-Colour LED Strip
Technical Specifications
- Product Code: PLEO-VIVID-M-S
- Variant: Vivid Green
- Light Source: 140 SMD LEDs per metre
- Power Consumption: 9.6W per metre
- Input Voltage: 24V DC
- Beam Angle: 110°
- Ingress Protection: IP67
- Cutting Increment: 50mm
- Dimming: Yes, with compatible 24V driver or controller
- Maximum Continuous Run: 5m single-feed or 10m dual-feed
- Operating Temperature: -15°C to 85°C
- Supply Format: Sold per metre
- Driver Requirement: Requires a 24V DC constant-voltage LED driver
- Colour Rendering Index: CRI 90
- Dimensions (H x L x W): 8mm x 1000mm x 11mm
- Weight: 0.12 kg
Key Features
- Fixed vivid green light output
- IP67-rated construction for indoor, damp-area and suitable outdoor applications
- 140 SMD LEDs per metre for consistent illumination
- Cuttable in 50mm increments
- Dimmable with compatible control equipment
- 110° beam angle for even light distribution
- Supports runs up to 5m from one end or 10m when fed from both ends
- Suitable for signage, facades, outlines and feature lighting
- Sold by the metre for custom-length installations
Professional Installation Requirements
- Installation and connection to the mains-powered 24V DC driver should be completed by a licensed electrician. Use a compatible constant-voltage driver, observe polarity, seal all IP67 connections correctly and follow the manufacturer's installation instructions.
Applications
- Architectural feature lighting
- Signage and sign outlines
- Building facades
- Retail and hospitality displays
- Bars, restaurants and entertainment venues
- Outdoor or damp-area accent lighting
- Cove, edge and contour lighting
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires, applicable to the assembled lighting system where relevant
- AS/NZS 3000: Electrical installations, applicable to the installation of the associated driver and wiring
Environmental Benefits
- Low-voltage LED technology provides an energy-efficient alternative to many traditional decorative lighting sources
- 9.6W/m power consumption helps reduce operating energy use for decorative and architectural lighting
- IP67 construction can support longer service life in suitable damp or outdoor environments, reducing replacement waste
- Dimmable operation can reduce energy consumption when full output is not required
Warranty Information
Backed by a 3-year replacement warranty for residential applications and a 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions, licensed installation and use in accordance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
